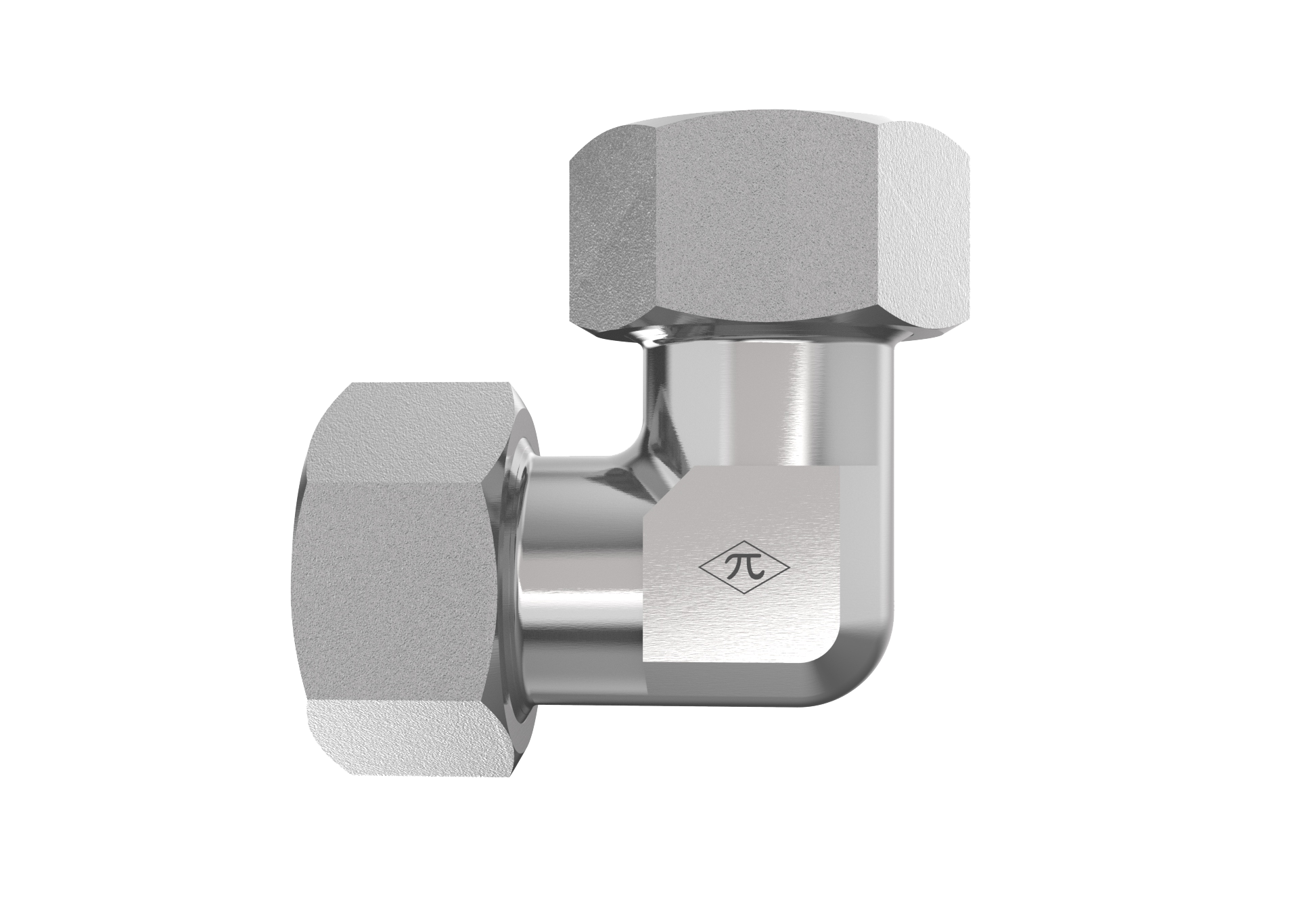

D2500 product image

D2500-S20-S20

20mm DIN Tube x 20mm DIN Tube

D2500-S20-S20 is a 20mm DIN Tube x 20mm DIN Tube in the D2500 Series. For connecting metric tubes or lines at a 90° angle.

  • Steel
  • Zinc Nickel
  • Union Elbow
$57.96
(0) Write a Review
SKU:
D2500-S20-S20

Product Details

Connection A
TypeDIN Tube
Tube OD20mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM30X2.0
Connection B
TypeDIN Tube
Tube OD20mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM30X2.0
Connection C
Connection D
Specifications
MaterialSteel
PlatingZinc Nickel
Weight0.97 lb
ShapeUnion Elbow
Cross References
ParkerW20SCF

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
