D2500 product image

D2500-S25-S25

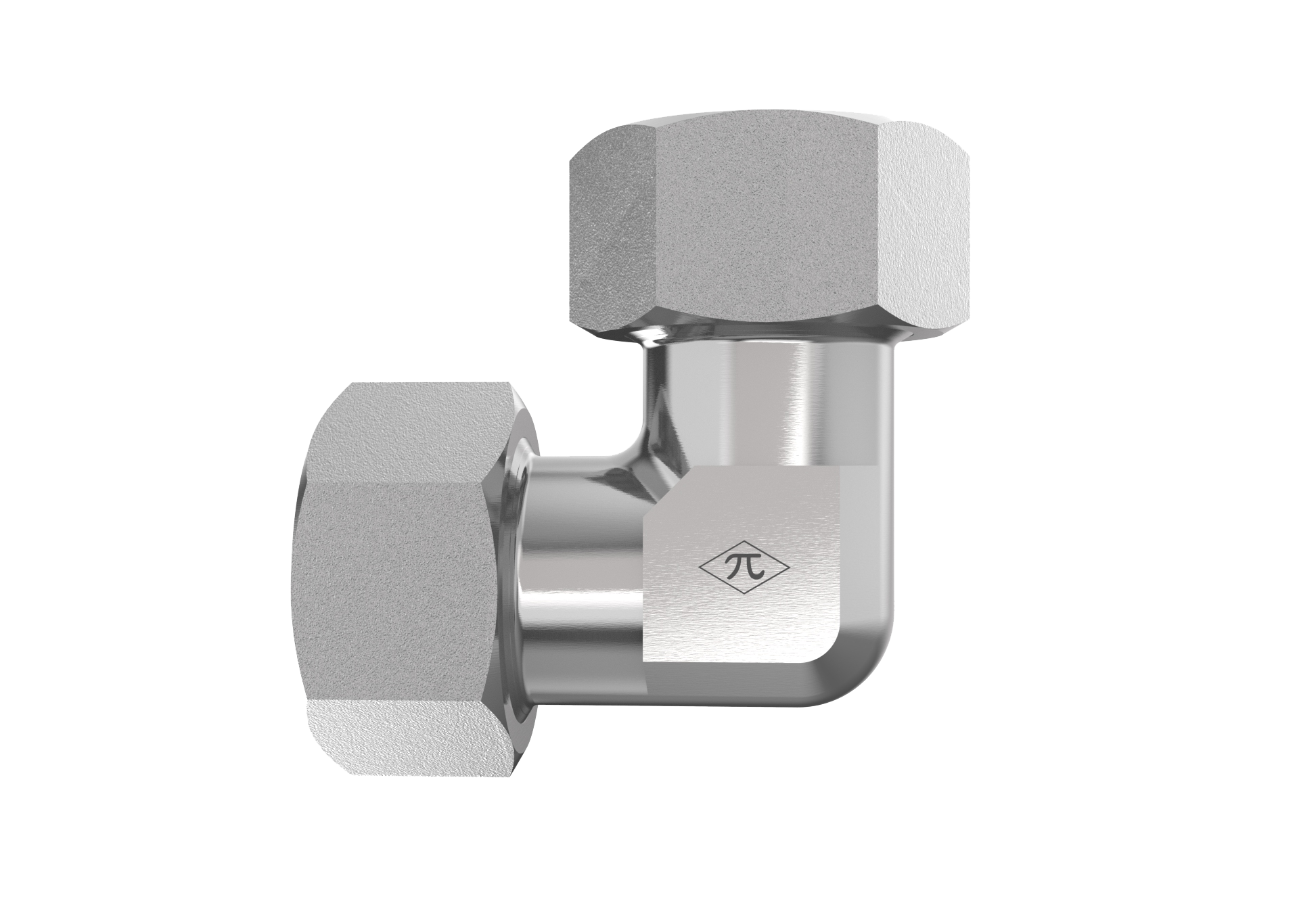

25mm DIN Tube x 25mm DIN Tube

D2500-S25-S25 is a 25mm DIN Tube x 25mm DIN Tube in the D2500 Series. For connecting metric tubes or lines at a 90° angle.

  • Steel
  • Zinc Nickel
  • Union Elbow
$95.72
(0) Write a Review
SKU:
D2500-S25-S25

Product Details

Connection A
TypeDIN Tube
Tube OD25mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM36X2.0
Connection B
TypeDIN Tube
Tube OD25mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM36X2.0
Connection C
Connection D
Specifications
MaterialSteel
PlatingZinc Nickel
Weight1.84 lb
ShapeUnion Elbow
Cross References
ParkerW25SCF

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
