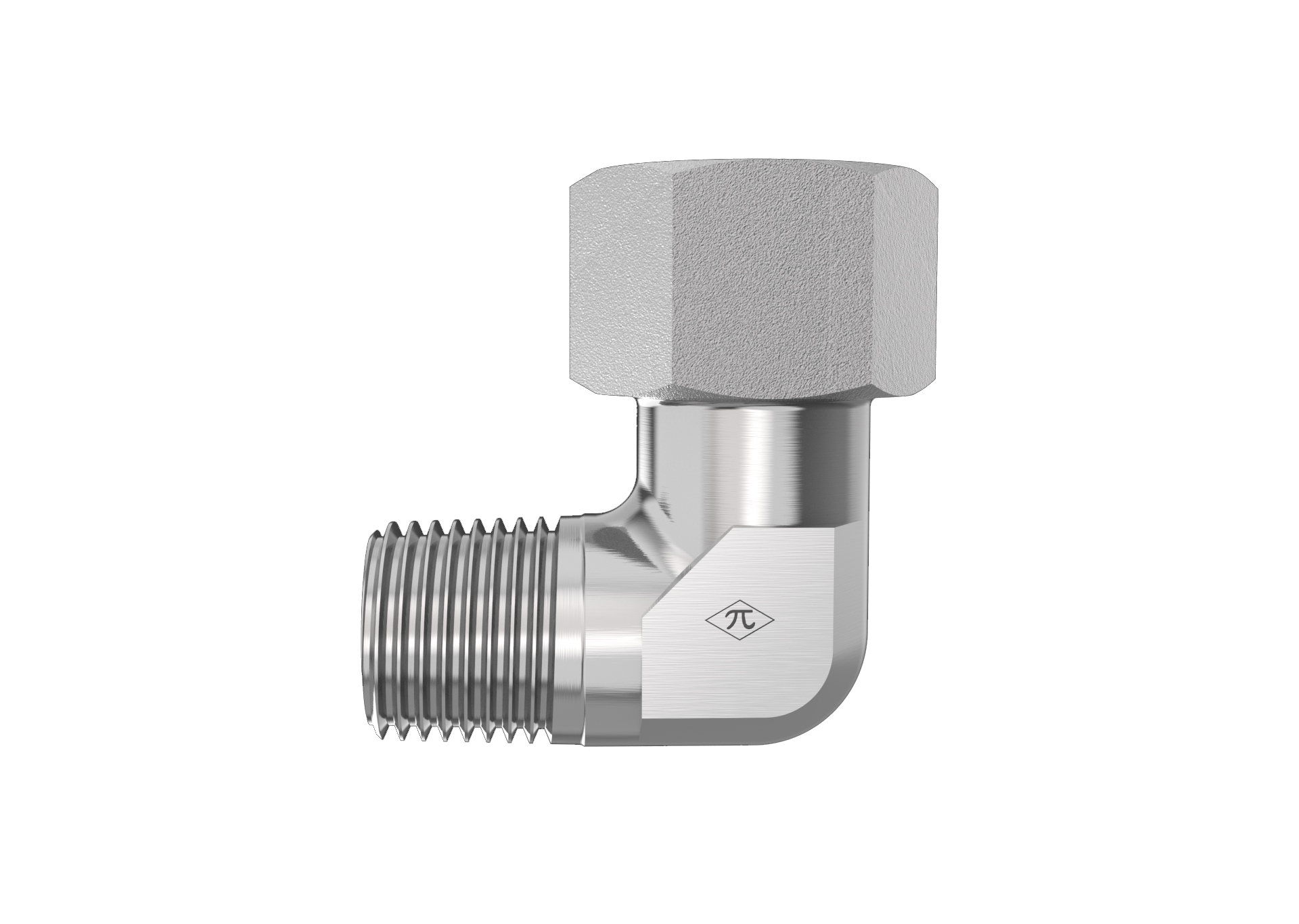

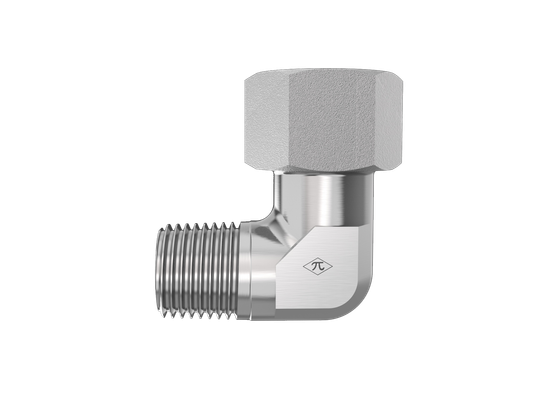

D2501-E04-02

4mm DIN Tube x 1/8" Male NPT

D2501-E04-02 is a 4mm DIN Tube x 1/8" Male NPT in the D2501 Series. For connecting metric tube or line to a female NPT connector at a 90° angle.

  • Steel
  • Zinc Nickel
  • Male Elbow
$34.31
(0) Write a Review
SKU:
D2501-E04-02

Product Details

Connection A
TypeDIN Tube
Tube OD4mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM08X1.0
Connection B
TypeMale NPT
Pipe Size1/8"
StandardANSI/ASME B1.20.1
Thread TypeM08X1.0
Connection C
Connection D
Specifications
MaterialSteel
PlatingZinc Nickel
Weight0.04 lb
ShapeMale Elbow
Cross References
ParkerWE04LL1/8NPTCF

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
