D2501-E06-02

6mm DIN Tube x 1/8" Male NPT

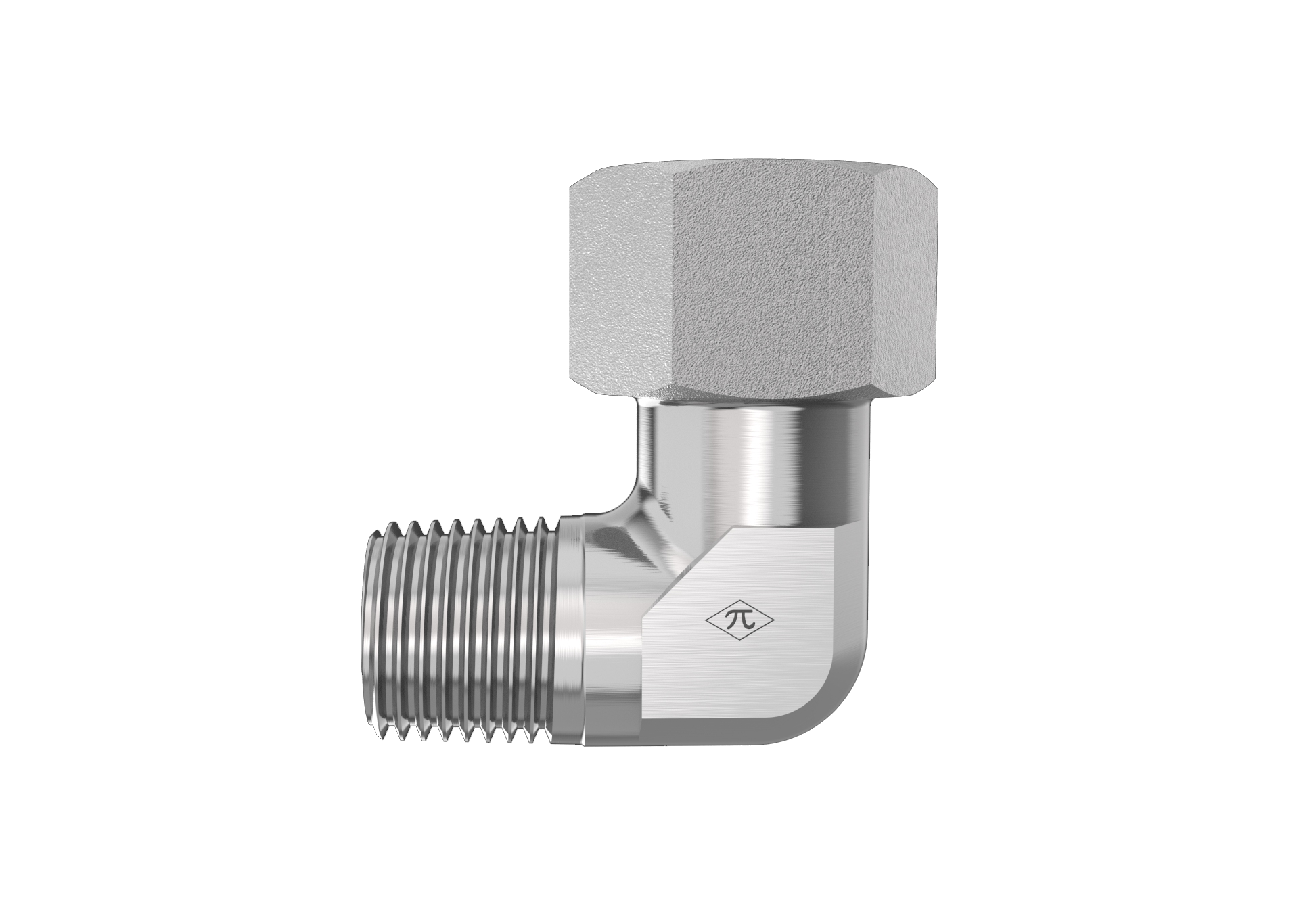

D2501-E06-02 is a 6mm DIN Tube x 1/8" Male NPT in the D2501 Series. For connecting metric tube or line to a female NPT connector at a 90° angle.

  • Steel
  • Zinc Nickel
  • Male Elbow
$11.47
(0) Write a Review
SKU:
D2501-E06-02

Product Details

Connection A
TypeDIN Tube
Tube OD6mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM10X1.0
Connection B
TypeMale NPT
Pipe Size1/8"
StandardANSI/ASME B1.20.1
Thread TypeM10X1.0
Connection C
Connection D
Specifications
MaterialSteel
PlatingZinc Nickel
Weight0.06 lb
ShapeMale Elbow
Cross References
ParkerWE06LL1/8NPTCF

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
