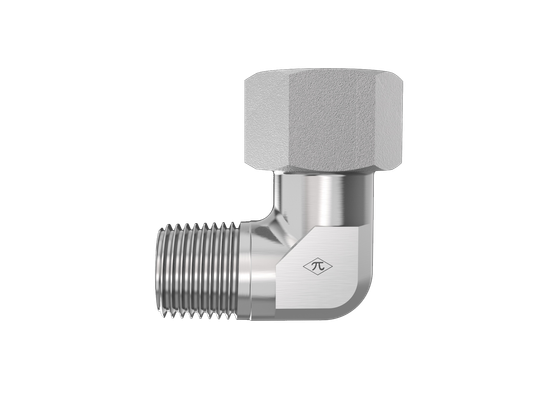

D2501-E08-02-X

8mm Male DIN x 1/8" Male NPT

D2501-E08-02-X is a 8mm Male DIN x 1/8" Male NPT in the D2501-X Series. For connecting metric tube or line, already containing nut and cuttings ring, to a female NPT connector at a 90° angle.

  • Steel
  • Zinc Nickel
  • Male Elbow
$11.26
(0) Write a Review
SKU:
D2501-E08-02-X

Product Details

Connection A
TypeMale DIN
Tube OD8mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM12X1.0
Connection B
TypeMale NPT
Pipe Size1/8"
StandardANSI/ASME B1.20.1
Thread TypeM12X1.0
Connection C
Connection D
Specifications
MaterialSteel
PlatingZinc Nickel
Weight0.03 lb
ShapeMale Elbow
Cross References
ParkerWE08LL1/8NPTCFX

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
