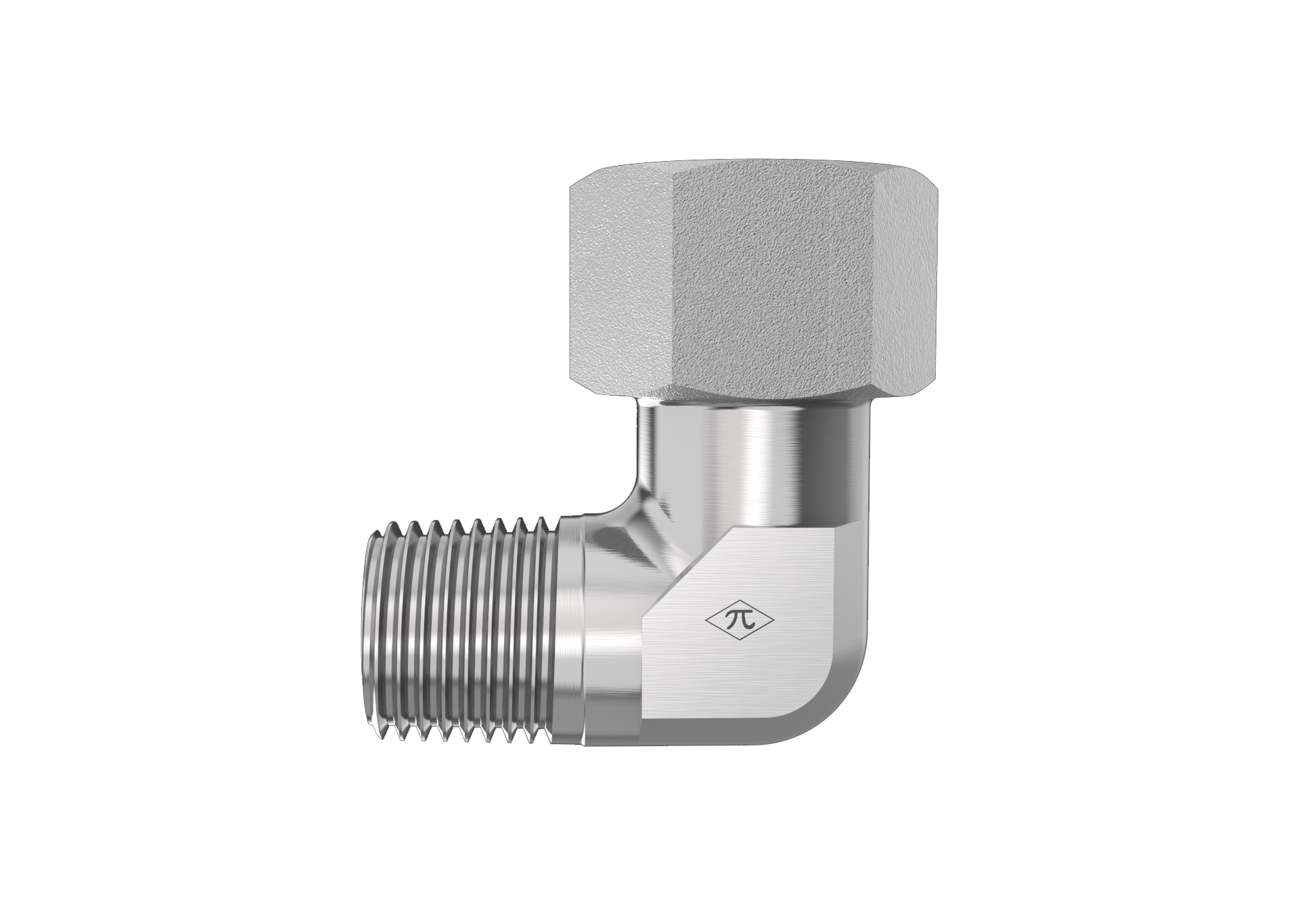

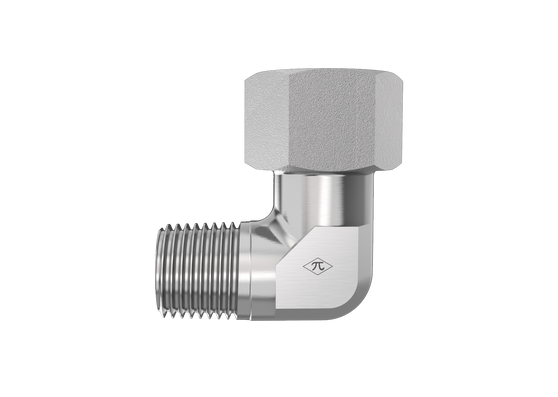

D2501-L15-08-SS-X

15mm Male DIN x 1/2" Male NPT

D2501-L15-08-SS-X is a 15mm Male DIN x 1/2" Male NPT in the D2501-X Series. For connecting metric tube or line, already containing nut and cuttings ring, to a female NPT connector at a 90° angle.

  • Stainless Steel
  • Male Elbow
  • None
$133.58
(0) Write a Review
SKU:
D2501-L15-08-SS-X

Product Details

Connection A
TypeMale DIN
Tube OD15mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM22X1.5
Connection B
TypeMale NPT
Pipe Size1/2"
StandardANSI/ASME B1.20.1
Thread TypeM22X1.5
Connection C
Connection D
Specifications
MaterialStainless Steel
Weight0.22 lb
ShapeMale Elbow
PlatingNone
Cross References
ParkerWE15L1/2NPT71X

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
