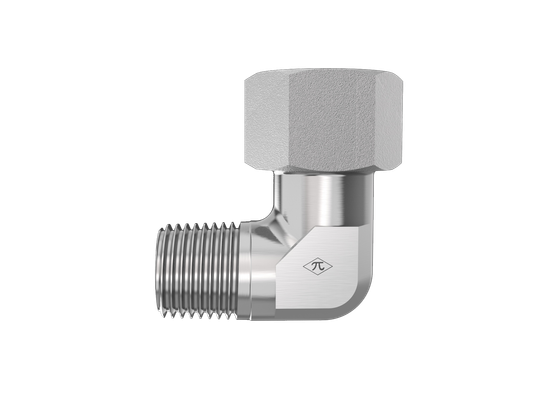

D2501-L28-16

28mm DIN Tube x 1" Male NPT

D2501-L28-16 is a 28mm DIN Tube x 1" Male NPT in the D2501 Series. For connecting metric tube or line to a female NPT connector at a 90° angle.

  • Steel
  • Trivalent Zinc
$101.04
(0) Write a Review
SKU:
D2501-L28-16

Product Details

Connection A
TypeDIN Tube
Tube OD28mm
StandardDIN 2353 / ISO 8434-1
Connection B
TypeMale NPT
Pipe Size1"
StandardANSI/ASME B1.20.1
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight1 lb
Cross References

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
