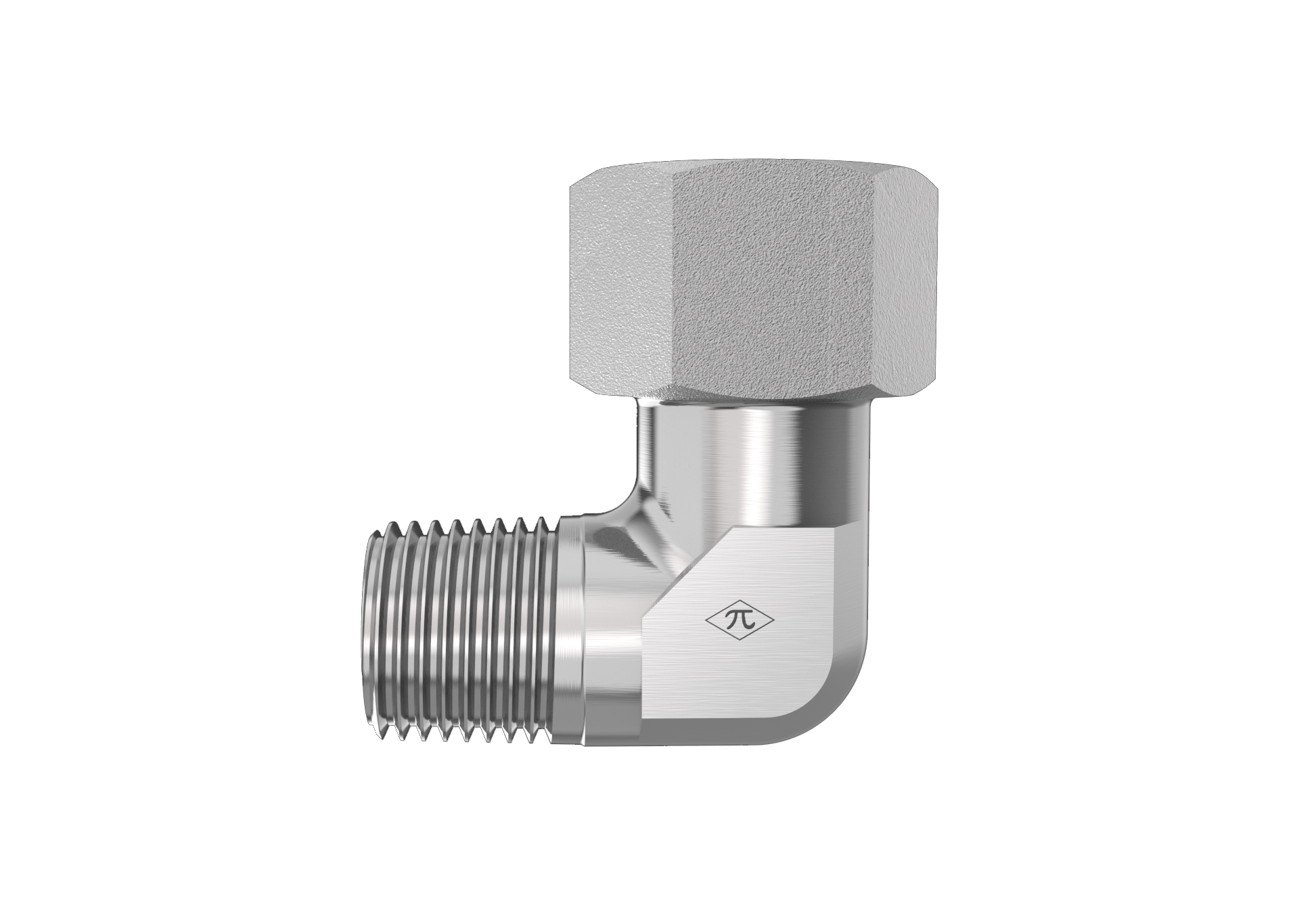

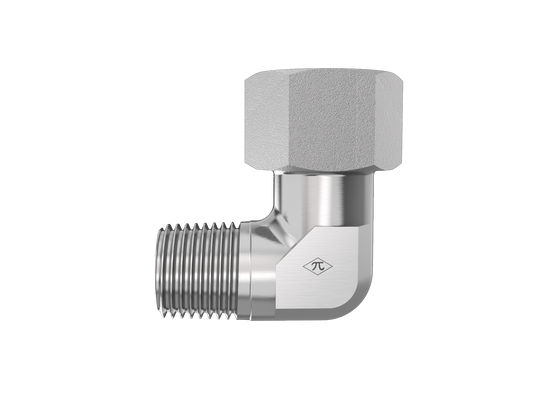

D2501-S10-08-SS

10mm DIN Tube x 1/2" Male NPT

D2501-S10-08-SS is a 10mm DIN Tube x 1/2" Male NPT in the D2501 Series. For connecting metric tube or line to a female NPT connector at a 90° angle.

  • Stainless Steel
  • Male Elbow
  • None
$158.43
(0) Write a Review
SKU:
D2501-S10-08-SS

Product Details

Connection A
TypeDIN Tube
Tube OD10mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM18X1.5
Connection B
TypeMale NPT
Pipe Size1/2"
StandardANSI/ASME B1.20.1
Thread TypeM18X1.5
Connection C
Connection D
Specifications
MaterialStainless Steel
Weight0.36 lb
ShapeMale Elbow
PlatingNone
Cross References
ParkerWE10S1/2NPT71

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
