D2601-L15-L15-08-SS

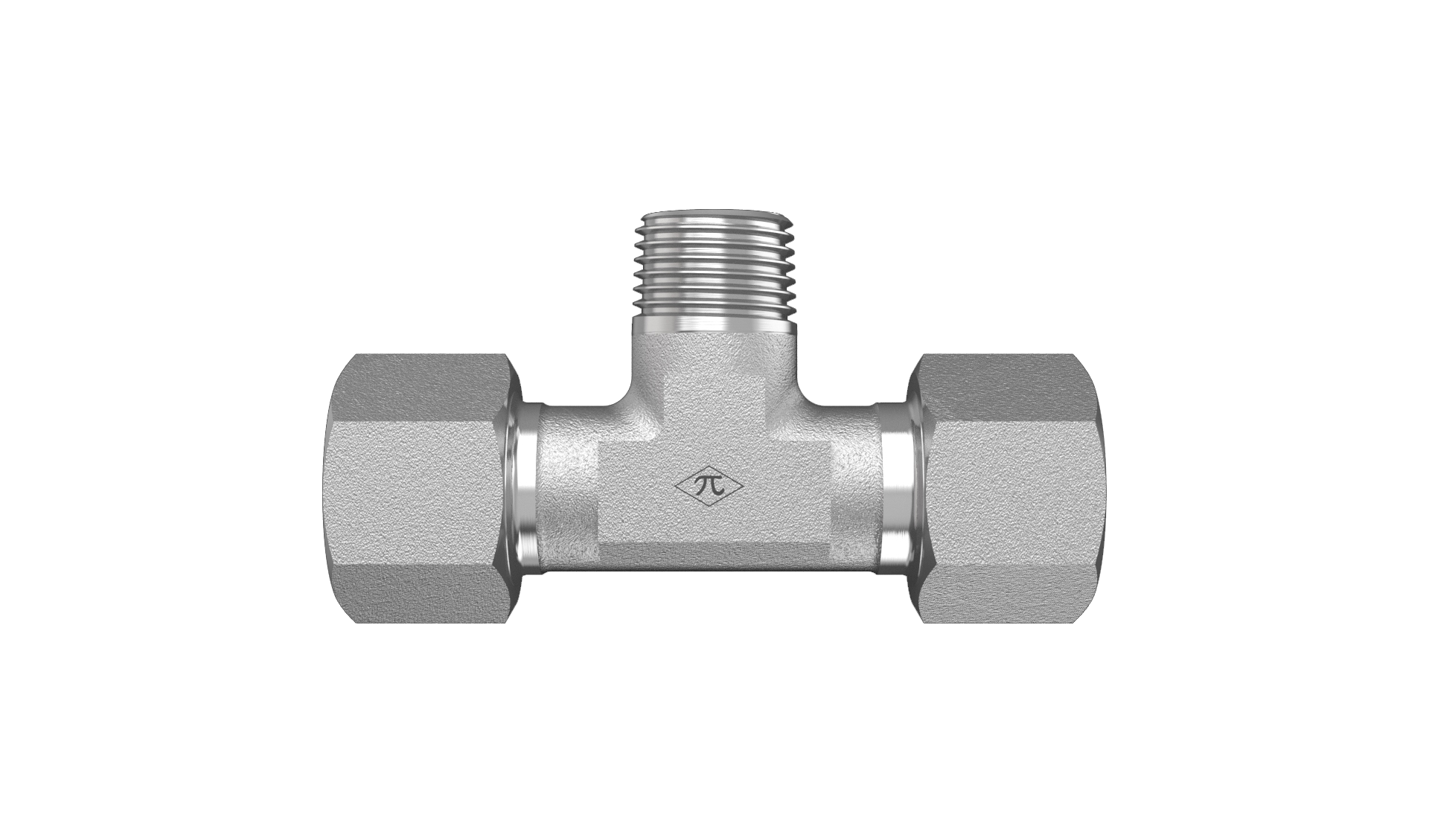

15mm DIN Tube x 15mm DIN Tube x 1/2" Male NPT

D2601-L15-L15-08-SS is a 15mm DIN Tube x 15mm DIN Tube x 1/2" Male NPT in the D2601 Series. For branching two metric tubes or lines to a Female NPT connector on the branch of the tee.

  • Stainless Steel
  • Male Branch Tee
  • None
$291.16
(0) Write a Review
SKU:
D2601-L15-L15-08-SS

Product Details

Connection A
TypeDIN Tube
Tube OD15mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM22X1.5
Connection B
TypeDIN Tube
Tube OD15mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM22X1.5
Connection C
TypeMale NPT
Pipe Size1/2"
StandardANSI/ASME B1.20.1
Thread TypeM22X1.5
Connection D
Specifications
MaterialStainless Steel
Weight0.50 lb
ShapeMale Branch Tee
PlatingNone
Cross References
ParkerTE15L1/2NPT71

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
