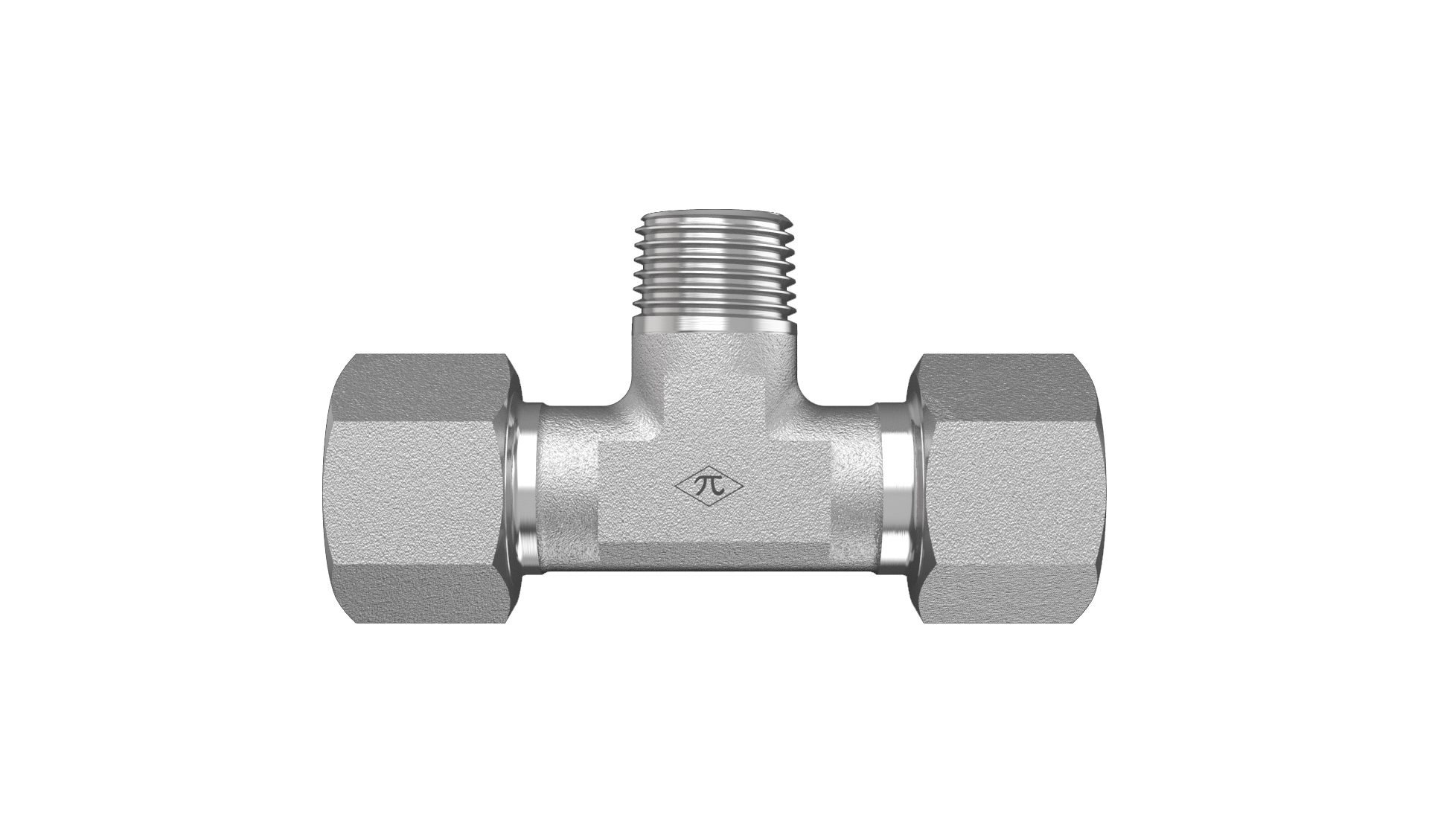

D2601-S06-S06-04-SS

6mm DIN Tube x 6mm DIN Tube x 1/4" Male NPT

D2601-S06-S06-04-SS is a 6mm DIN Tube x 6mm DIN Tube x 1/4" Male NPT in the D2601 Series. For branching two metric tubes or lines to a Female NPT connector on the branch of the tee.

  • Stainless Steel
  • Male Branch Tee
  • None
$137.51
(0) Write a Review
SKU:
D2601-S06-S06-04-SS

Product Details

Connection A
TypeDIN Tube
Tube OD6mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM14X1.5
Connection B
TypeDIN Tube
Tube OD6mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM14X1.5
Connection C
TypeMale NPT
Pipe Size1/4"
StandardANSI/ASME B1.20.1
Thread TypeM14X1.5
Connection D
Specifications
MaterialStainless Steel
Weight0.22 lb
ShapeMale Branch Tee
PlatingNone
Cross References
ParkerTE06S1/4NPT71

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
