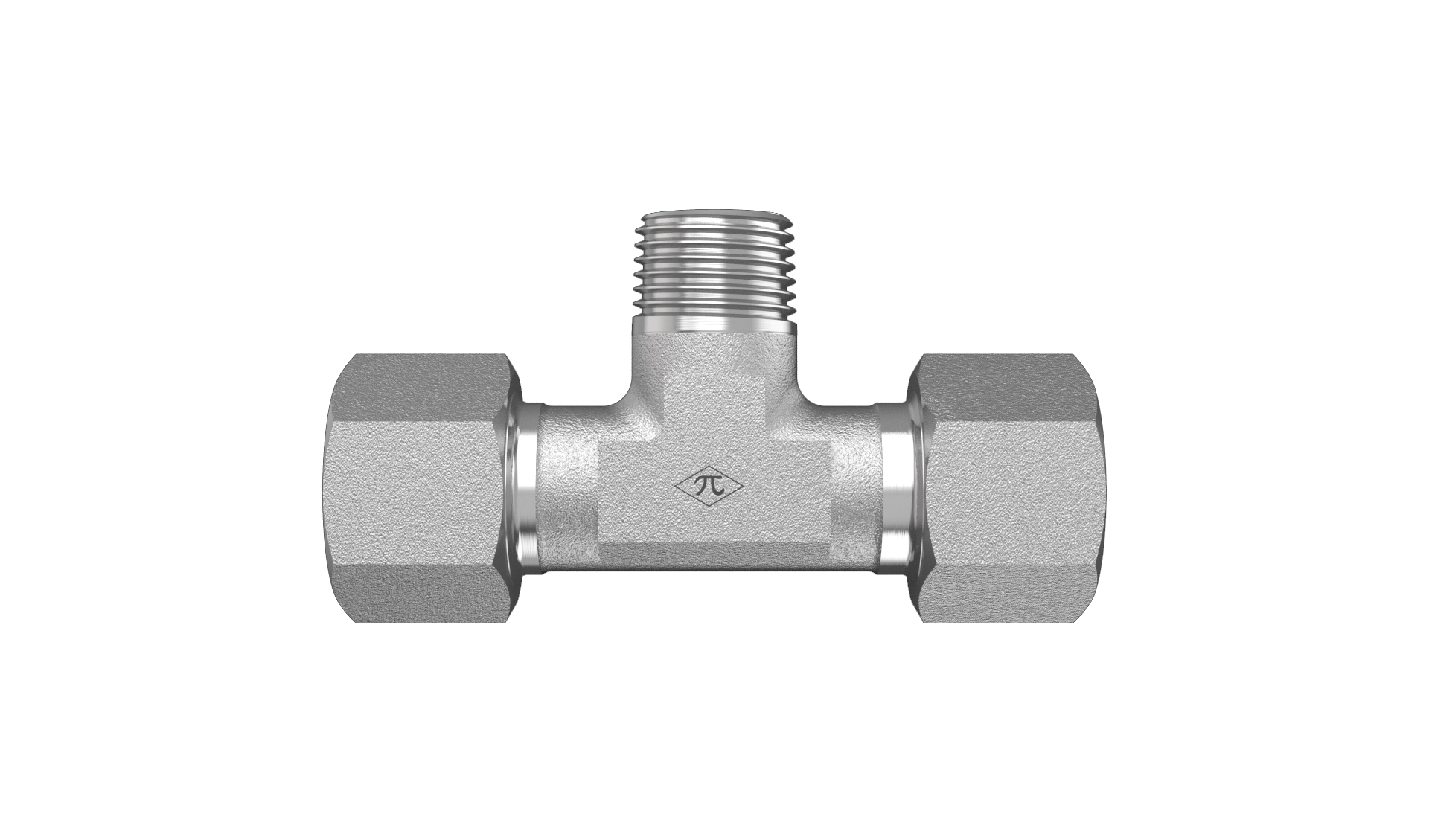

D2601-S10-S10-06-SS-X

10mm Male DIN x 10mm Male DIN x 3/8" Male NPT

D2601-S10-S10-06-SS-X is a 10mm Male DIN x 10mm Male DIN x 3/8" Male NPT in the D2601-X Series. For branching two metric tubes or lines, already containing nuts and cutting rings, to a Female NPT connector on the branch of the tee.

  • Stainless Steel
  • Male Branch Tee
  • None
$138.15
(0) Write a Review
SKU:
D2601-S10-S10-06-SS-X

Product Details

Connection A
TypeMale DIN
Tube OD10mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM18X1.5
Connection B
TypeMale DIN
Tube OD10mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM18X1.5
Connection C
TypeMale NPT
Pipe Size3/8"
StandardANSI/ASME B1.20.1
Thread TypeM18X1.5
Connection D
Specifications
MaterialStainless Steel
Weight0.21 lb
ShapeMale Branch Tee
PlatingNone
Cross References
ParkerTE10S3/8NPT71X

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
