D2603-L15-L12-L15

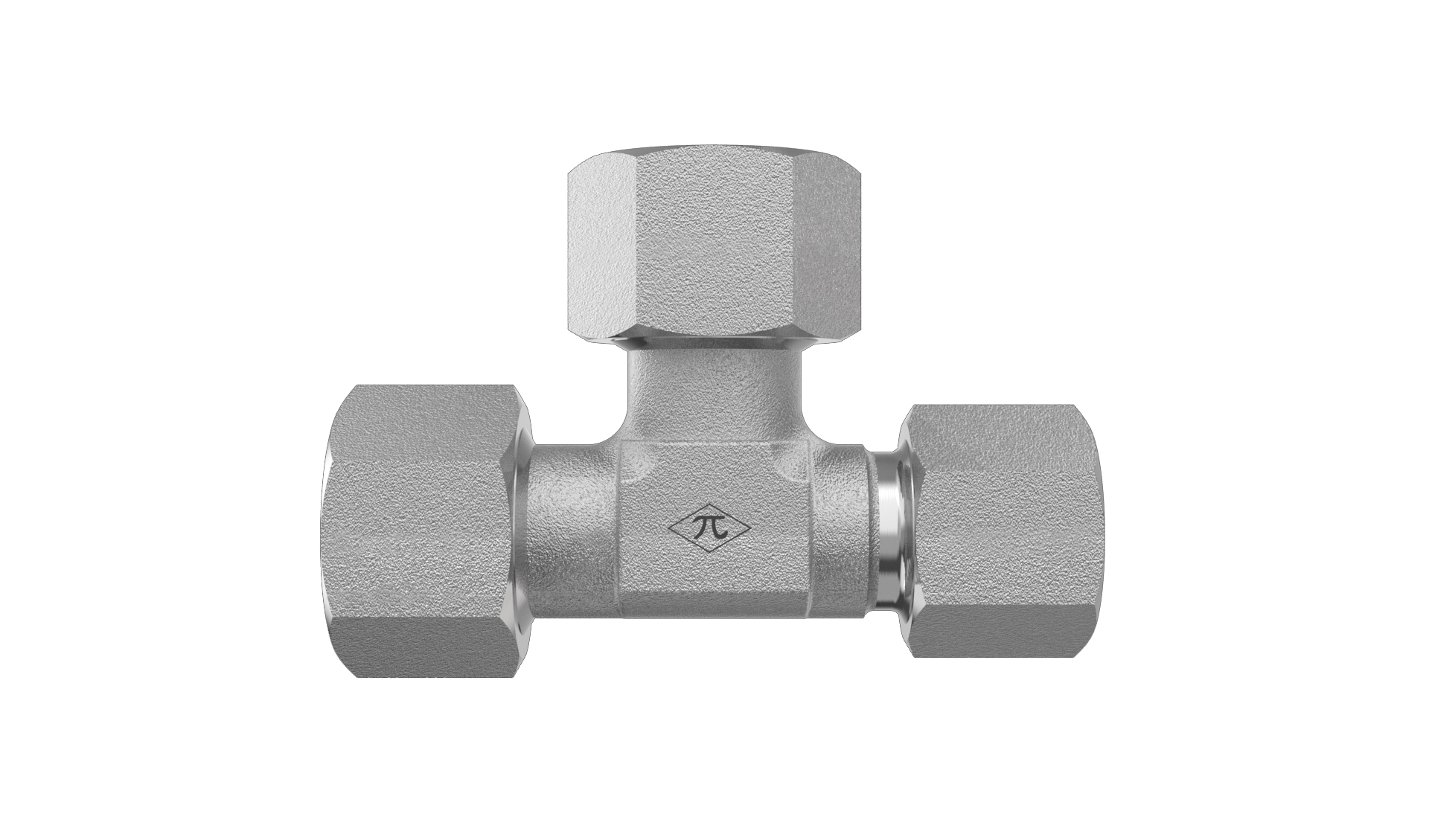

15mm DIN Tube x 12mm DIN Tube x 15mm DIN Tube

D2603-L15-L12-L15 is a 15mm DIN Tube x 12mm DIN Tube x 15mm DIN Tube in the D2603-REDUCER Series. For branching three metric tubes or lines of unequal size.

  • Steel
  • Trivalent Zinc
$62.47
(0) Write a Review
SKU:
D2603-L15-L12-L15

Product Details

Connection A
TypeDIN Tube
Tube OD15mm
StandardDIN 2353 / ISO 8434-1
Connection B
TypeDIN Tube
Tube OD12mm
StandardDIN 2353 / ISO 8434-1
Connection C
TypeDIN Tube
Tube OD15mm
StandardDIN 2353 / ISO 8434-1
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight1 lb
Cross References

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
