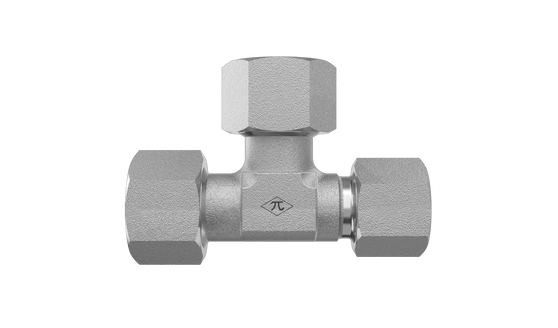

D2603-L18-L12-L12-SS

18mm DIN Tube x 12mm DIN Tube x 12mm DIN Tube

D2603-L18-L12-L12-SS is a 18mm DIN Tube x 12mm DIN Tube x 12mm DIN Tube in the D2603-REDUCER Series. For branching three metric tubes or lines of unequal size.

  • Stainless Steel
  • Reducer Union Tee
  • None
$429.59
(0) Write a Review
SKU:
D2603-L18-L12-L12-SS

Product Details

Connection A
TypeDIN Tube
Tube OD18mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM26X1.5
Connection B
TypeDIN Tube
Tube OD12mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM26X1.5
Connection C
TypeDIN Tube
Tube OD12mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM18X1.5
Connection D
Specifications
MaterialStainless Steel
Weight0.64 lb
ShapeReducer Union Tee
PlatingNone
Cross References
ParkerTR18/12/12L71

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
