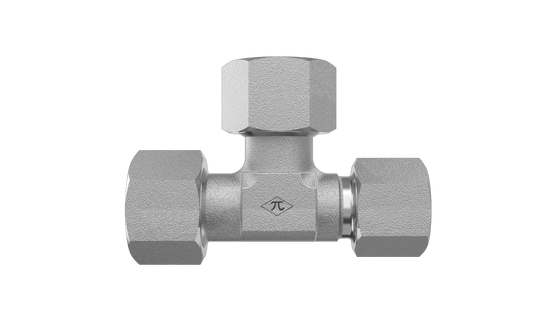

D2603-L18-L18-L12-SS

18mm DIN Tube x 18mm DIN Tube x 12mm DIN Tube

D2603-L18-L18-L12-SS is a 18mm DIN Tube x 18mm DIN Tube x 12mm DIN Tube in the D2603-REDUCER Series. For branching three metric tubes or lines of unequal size.

  • Stainless Steel
  • None
$365.54
(0) Write a Review
SKU:
D2603-L18-L18-L12-SS

Product Details

Connection A
TypeDIN Tube
Tube OD18mm
StandardDIN 2353 / ISO 8434-1
Connection B
TypeDIN Tube
Tube OD18mm
StandardDIN 2353 / ISO 8434-1
Connection C
TypeDIN Tube
Tube OD12mm
StandardDIN 2353 / ISO 8434-1
Connection D
Specifications
MaterialStainless Steel
Weight1 lb
PlatingNone
Cross References

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
