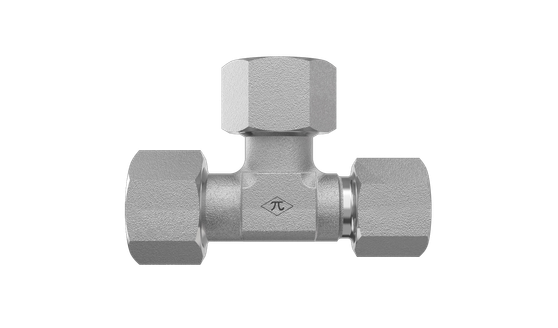

D2603-L22-L15-L15-SS

22mm DIN Tube x 15mm DIN Tube x 15mm DIN Tube

D2603-L22-L15-L15-SS is a 22mm DIN Tube x 15mm DIN Tube x 15mm DIN Tube in the D2603-REDUCER Series. For branching three metric tubes or lines of unequal size.

  • Stainless Steel
  • Reducer Union Tee
  • None
$437.75
(0) Write a Review
SKU:
D2603-L22-L15-L15-SS

Product Details

Connection A
TypeDIN Tube
Tube OD22mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM30X2.0
Connection B
TypeDIN Tube
Tube OD15mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM30X2.0
Connection C
TypeDIN Tube
Tube OD15mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM22X1.5
Connection D
Specifications
MaterialStainless Steel
Weight0.93 lb
ShapeReducer Union Tee
PlatingNone
Cross References
ParkerTR22/15/15L71

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
