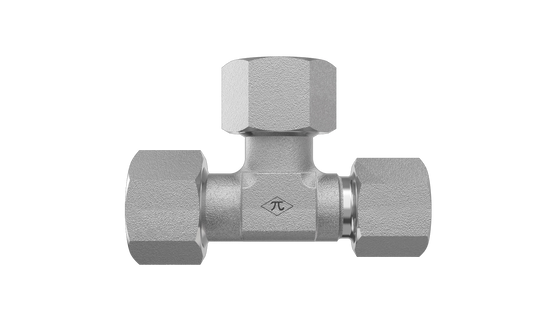

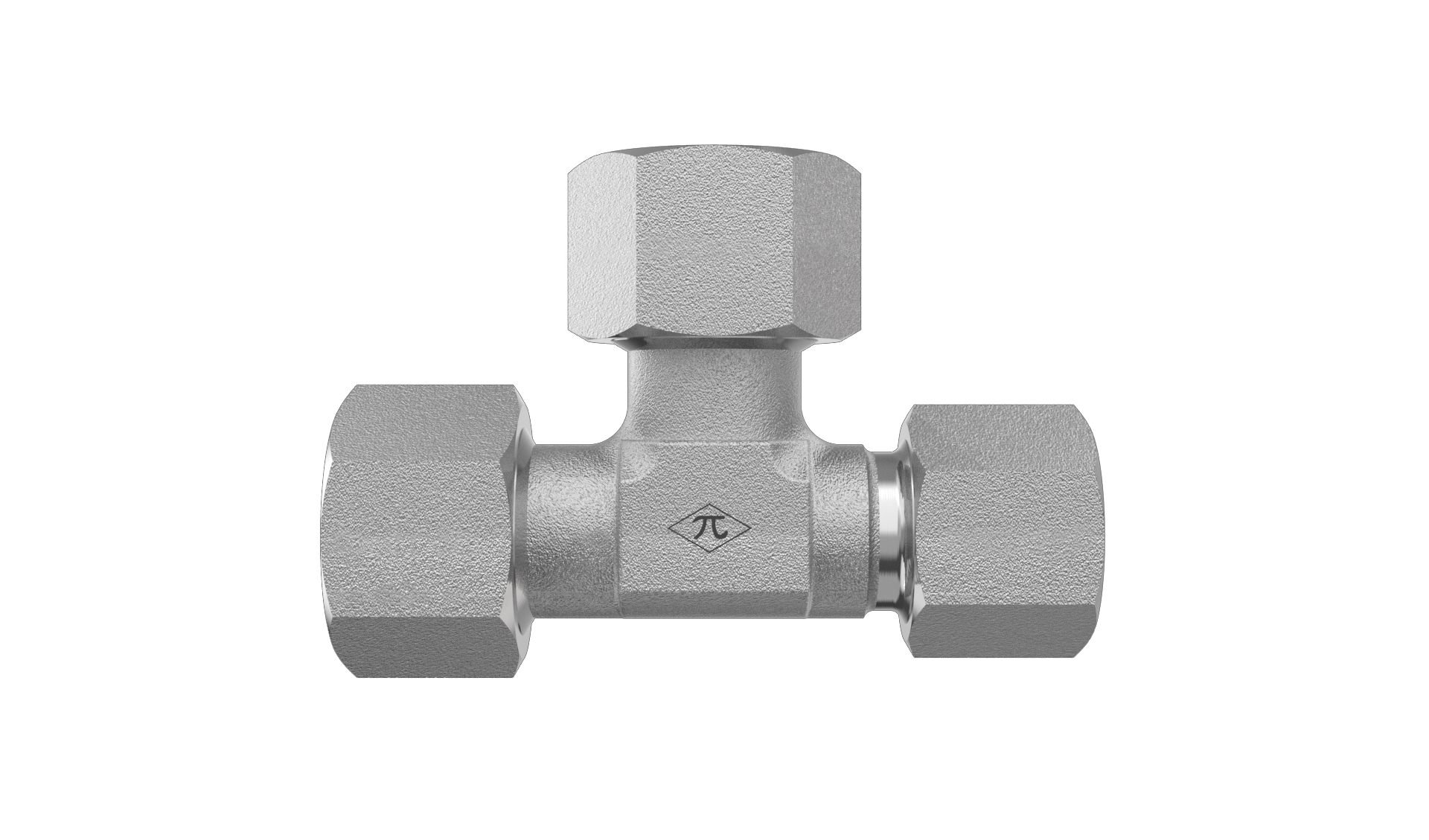

D2603-L22-L22-L10-SS

22mm DIN Tube x 22mm DIN Tube x 10mm DIN Tube

D2603-L22-L22-L10-SS is a 22mm DIN Tube x 22mm DIN Tube x 10mm DIN Tube in the D2603-REDUCER Series. For branching three metric tubes or lines of unequal size.

  • Stainless Steel
  • Reducer Union Tee
  • None
$451.84
(0) Write a Review
SKU:
D2603-L22-L22-L10-SS

Product Details

Connection A
TypeDIN Tube
Tube OD22mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM30X2.0
Connection B
TypeDIN Tube
Tube OD22mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM30X2.0
Connection C
TypeDIN Tube
Tube OD10mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM30X2.0
Connection D
Specifications
MaterialStainless Steel
Weight0.96 lb
ShapeReducer Union Tee
PlatingNone
Cross References
ParkerTR22/10/22L71

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
