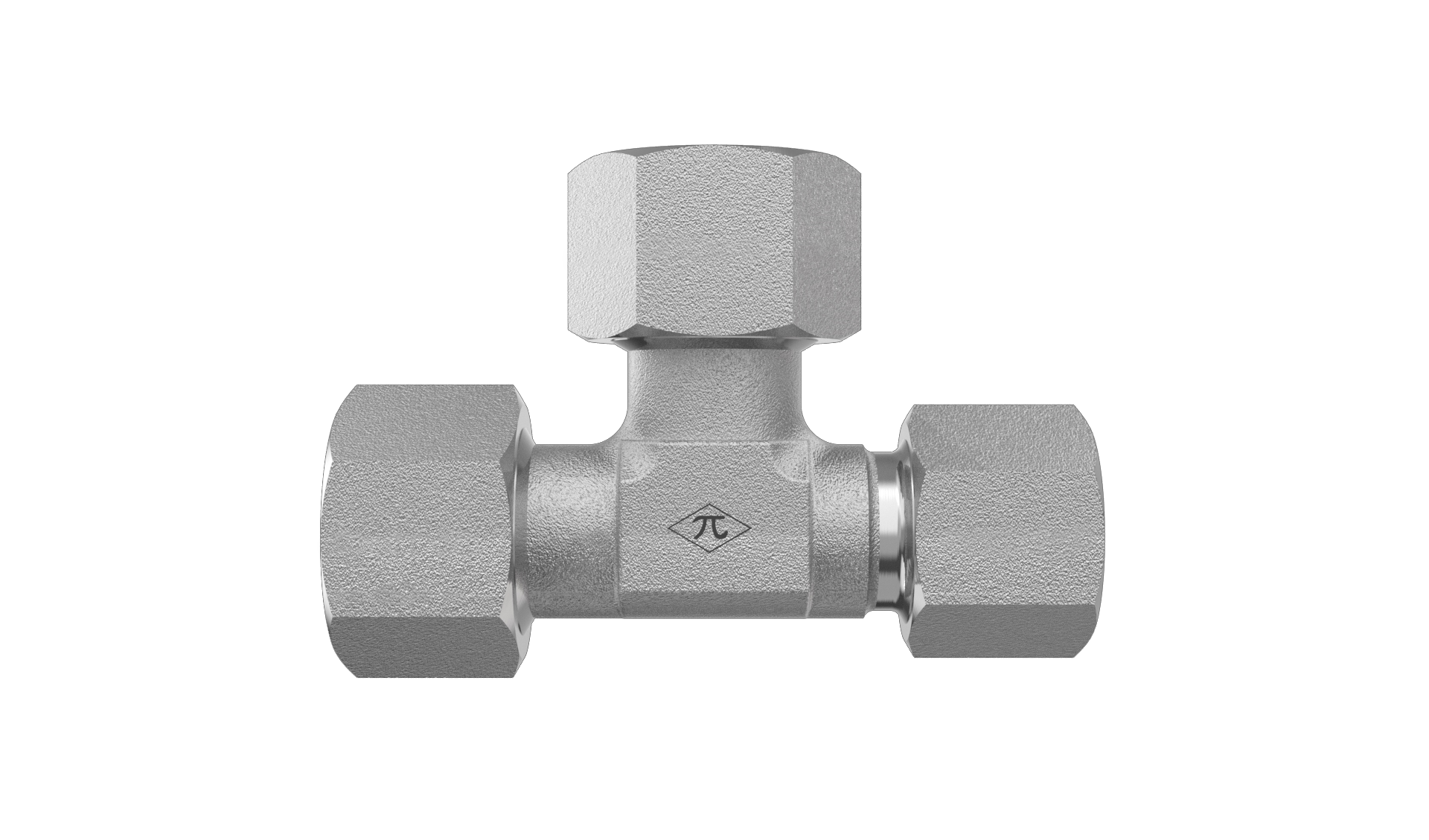

D2603-L22-L22-L15

22mm DIN Tube x 22mm DIN Tube x 15mm DIN Tube

D2603-L22-L22-L15 is a 22mm DIN Tube x 22mm DIN Tube x 15mm DIN Tube in the D2603-REDUCER Series. For branching three metric tubes or lines of unequal size.

  • Steel
  • Zinc Nickel
  • Reducer Union Tee
$145.80
(0) Write a Review
SKU:
D2603-L22-L22-L15

Product Details

Connection A
TypeDIN Tube
Tube OD22mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM30X2.0
Connection B
TypeDIN Tube
Tube OD22mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM30X2.0
Connection C
TypeDIN Tube
Tube OD15mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM30X2.0
Connection D
Specifications
MaterialSteel
PlatingZinc Nickel
Weight1.01 lb
ShapeReducer Union Tee
Cross References
ParkerTR22/15/22LCF

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
