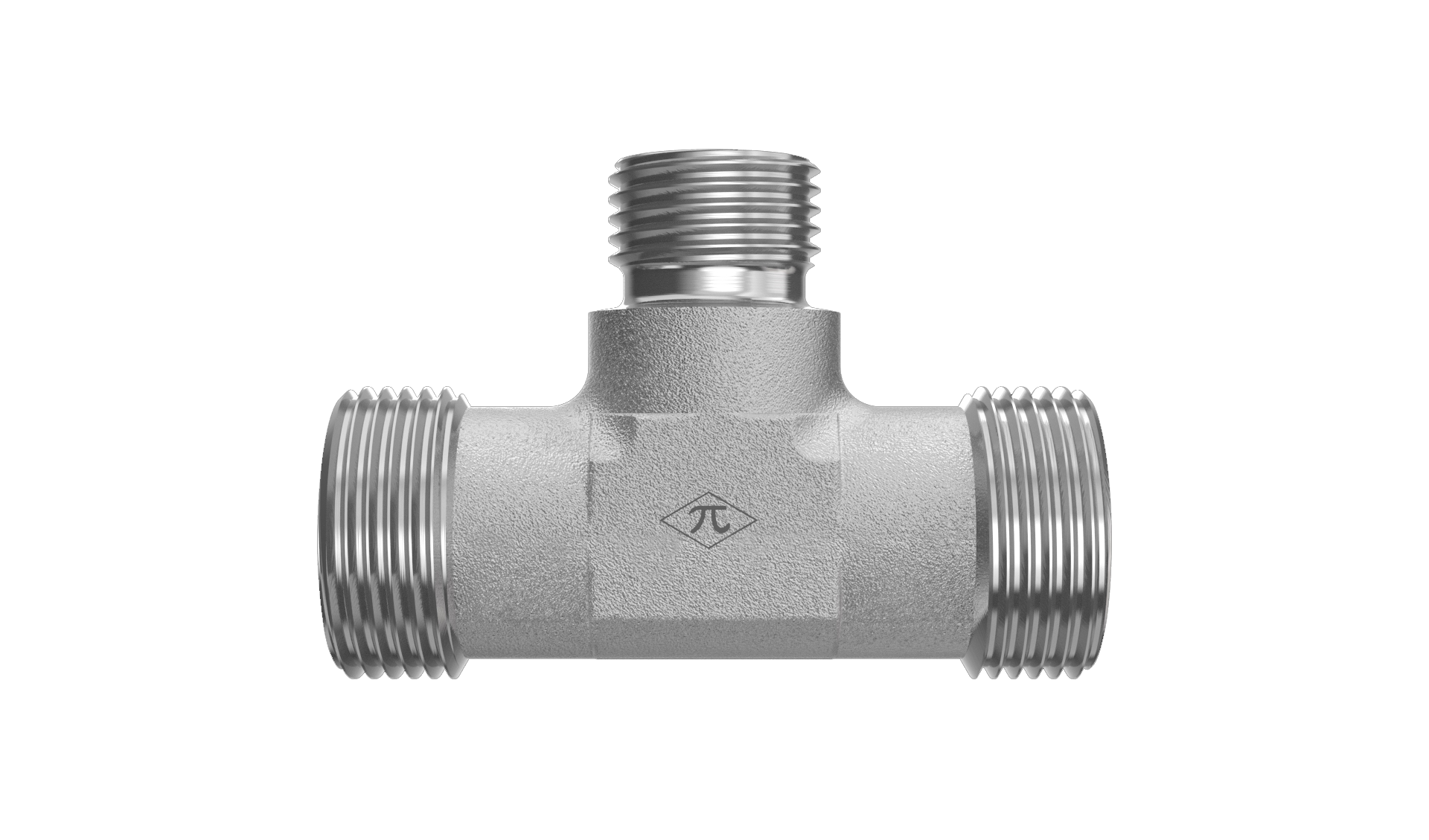

D2603-L35-L35-L15-SS-X

35mm Male DIN x 35mm Male DIN x 15mm Male DIN

D2603-L35-L35-L15-SS-X is a 35mm Male DIN x 35mm Male DIN x 15mm Male DIN in the D2603-REDUCER-X Series. For branching three metric tubes or lines of unequal size, already containing nuts and cutting rings.

  • Stainless Steel
  • Reducer Union Tee
  • None
$513.50
(0) Write a Review
SKU:
D2603-L35-L35-L15-SS-X

Product Details

Connection A
TypeMale DIN
Tube OD35mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM45X2.0
Connection B
TypeMale DIN
Tube OD35mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM45X2.0
Connection C
TypeMale DIN
Tube OD15mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM45X2.0
Connection D
Specifications
MaterialStainless Steel
Weight1.31 lb
ShapeReducer Union Tee
PlatingNone
Cross References
ParkerTR35/15/35L71X

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
