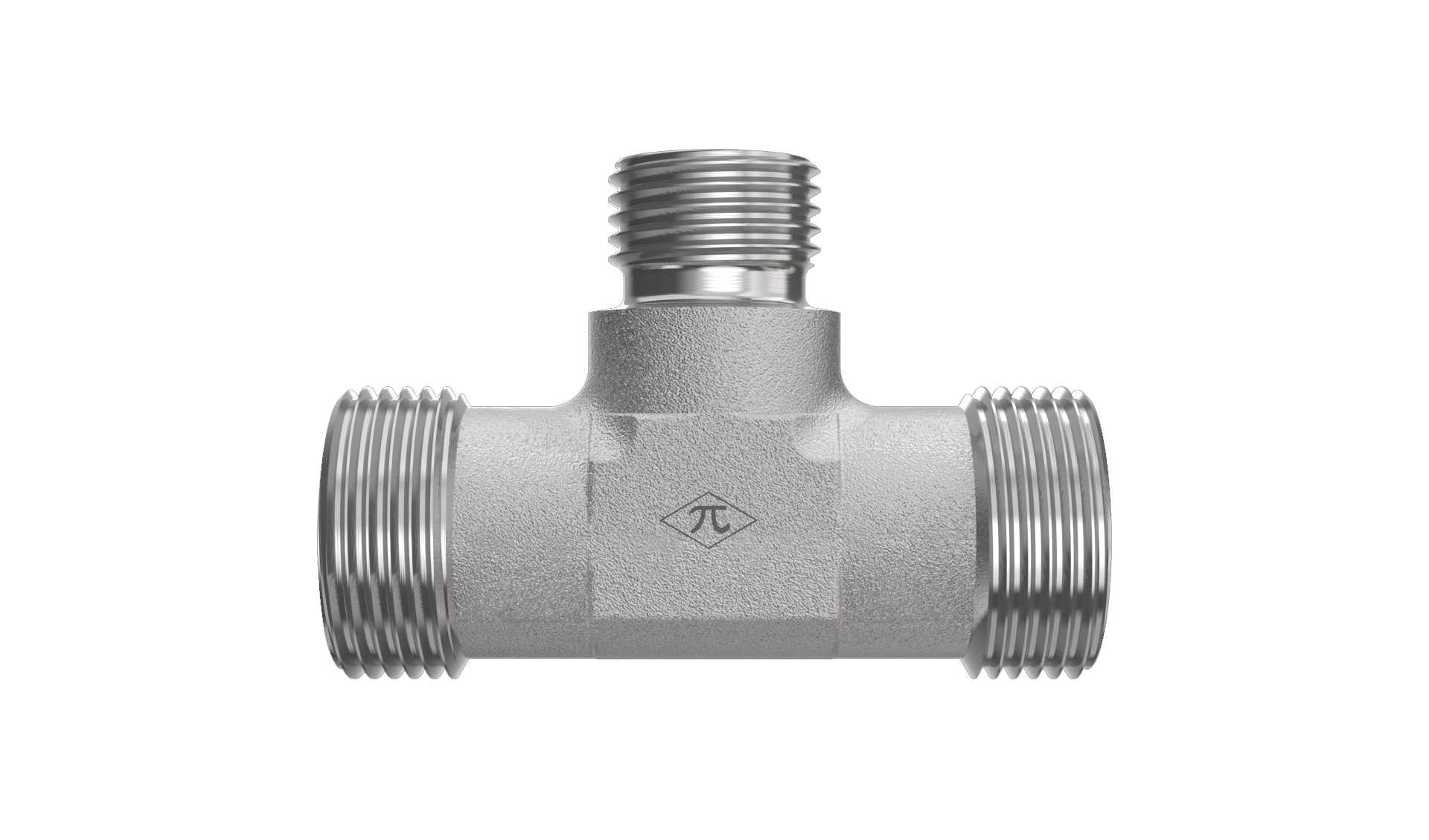

D2603-S12-S12-S16-SS-X

12mm Male DIN x 12mm Male DIN x 16mm Male DIN

D2603-S12-S12-S16-SS-X is a 12mm Male DIN x 12mm Male DIN x 16mm Male DIN in the D2603-REDUCER-X Series. For branching three metric tubes or lines of unequal size, already containing nuts and cutting rings.

  • Stainless Steel
  • Reducer Union Tee
  • None
$288.63
(0) Write a Review
SKU:
D2603-S12-S12-S16-SS-X

Product Details

Connection A
TypeMale DIN
Tube OD12mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM20X1.5
Connection B
TypeMale DIN
Tube OD12mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM20X1.5
Connection C
TypeMale DIN
Tube OD16mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM20X1.5
Connection D
Specifications
MaterialStainless Steel
Weight0.44 lb
ShapeReducer Union Tee
PlatingNone
Cross References
ParkerTR12/16/12S71X

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
