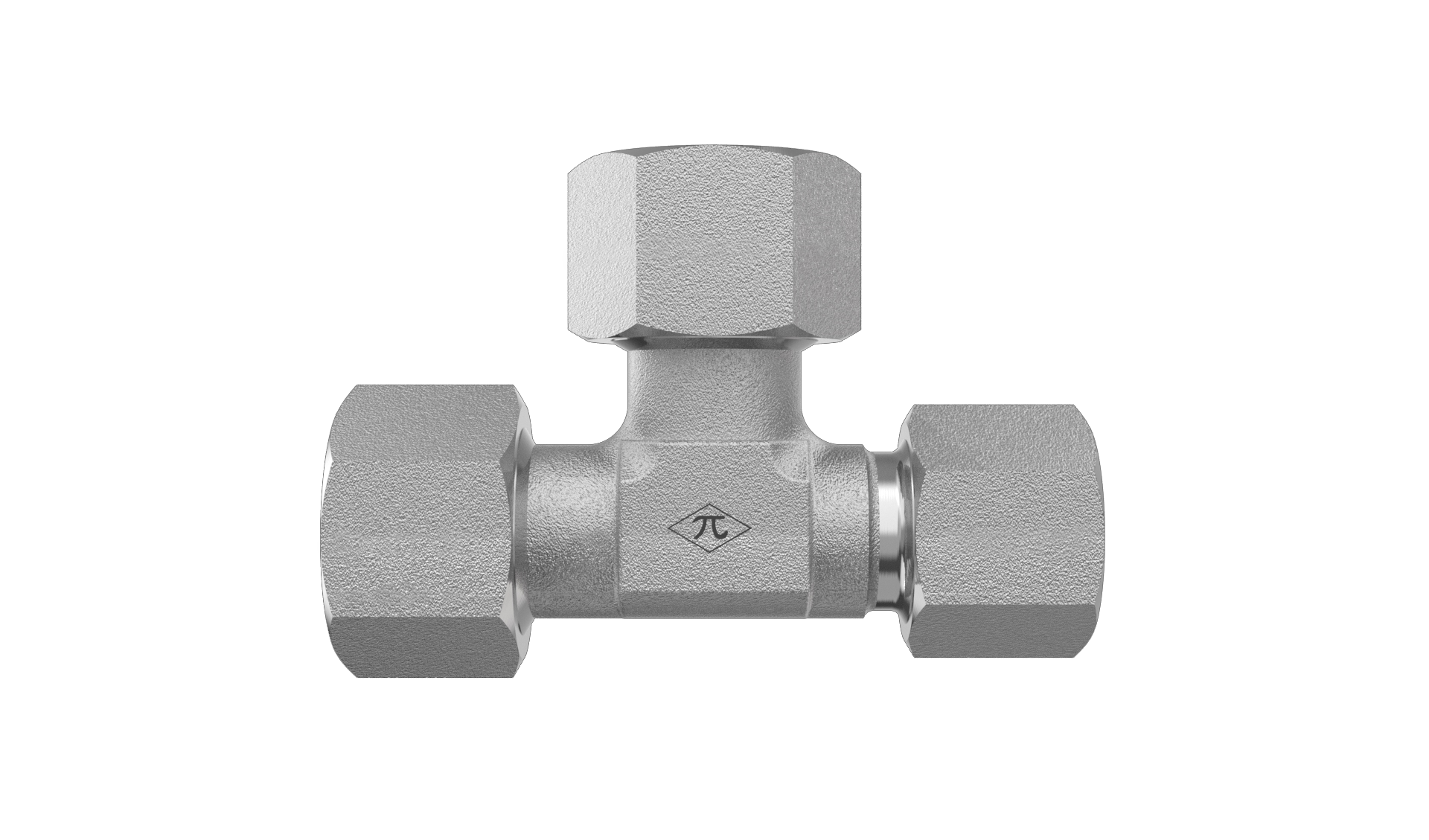

D2603-S14-S14-S08-SS

14mm DIN Tube x 14mm DIN Tube x 8mm DIN Tube

D2603-S14-S14-S08-SS is a 14mm DIN Tube x 14mm DIN Tube x 8mm DIN Tube in the D2603-REDUCER Series. For branching three metric tubes or lines of unequal size.

  • Stainless Steel
  • None
$309.49
(0) Write a Review
SKU:
D2603-S14-S14-S08-SS

Product Details

Connection A
TypeDIN Tube
Tube OD14mm
StandardDIN 2353 / ISO 8434-1
Connection B
TypeDIN Tube
Tube OD14mm
StandardDIN 2353 / ISO 8434-1
Connection C
TypeDIN Tube
Tube OD8mm
StandardDIN 2353 / ISO 8434-1
Connection D
Specifications
MaterialStainless Steel
Weight1 lb
PlatingNone
Cross References

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
