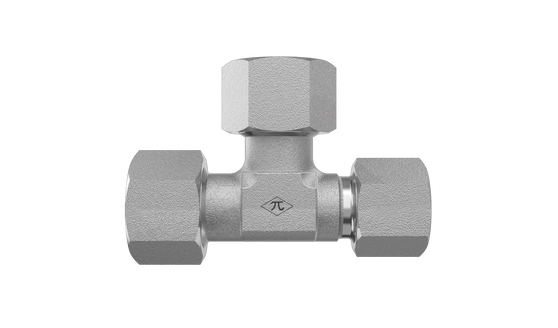

D2603-S16-S16-S12-SS

16mm DIN Tube x 16mm DIN Tube x 12mm DIN Tube

D2603-S16-S16-S12-SS is a 16mm DIN Tube x 16mm DIN Tube x 12mm DIN Tube in the D2603-REDUCER Series. For branching three metric tubes or lines of unequal size.

  • Stainless Steel
  • Reducer Union Tee
  • None
$372.68
(0) Write a Review
SKU:
D2603-S16-S16-S12-SS

Product Details

Connection A
TypeDIN Tube
Tube OD16mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM24X1.5
Connection B
TypeDIN Tube
Tube OD16mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM24X1.5
Connection C
TypeDIN Tube
Tube OD12mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM24X1.5
Connection D
Specifications
MaterialStainless Steel
Weight0.85 lb
ShapeReducer Union Tee
PlatingNone
Cross References
ParkerTR16/12/16S71

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
