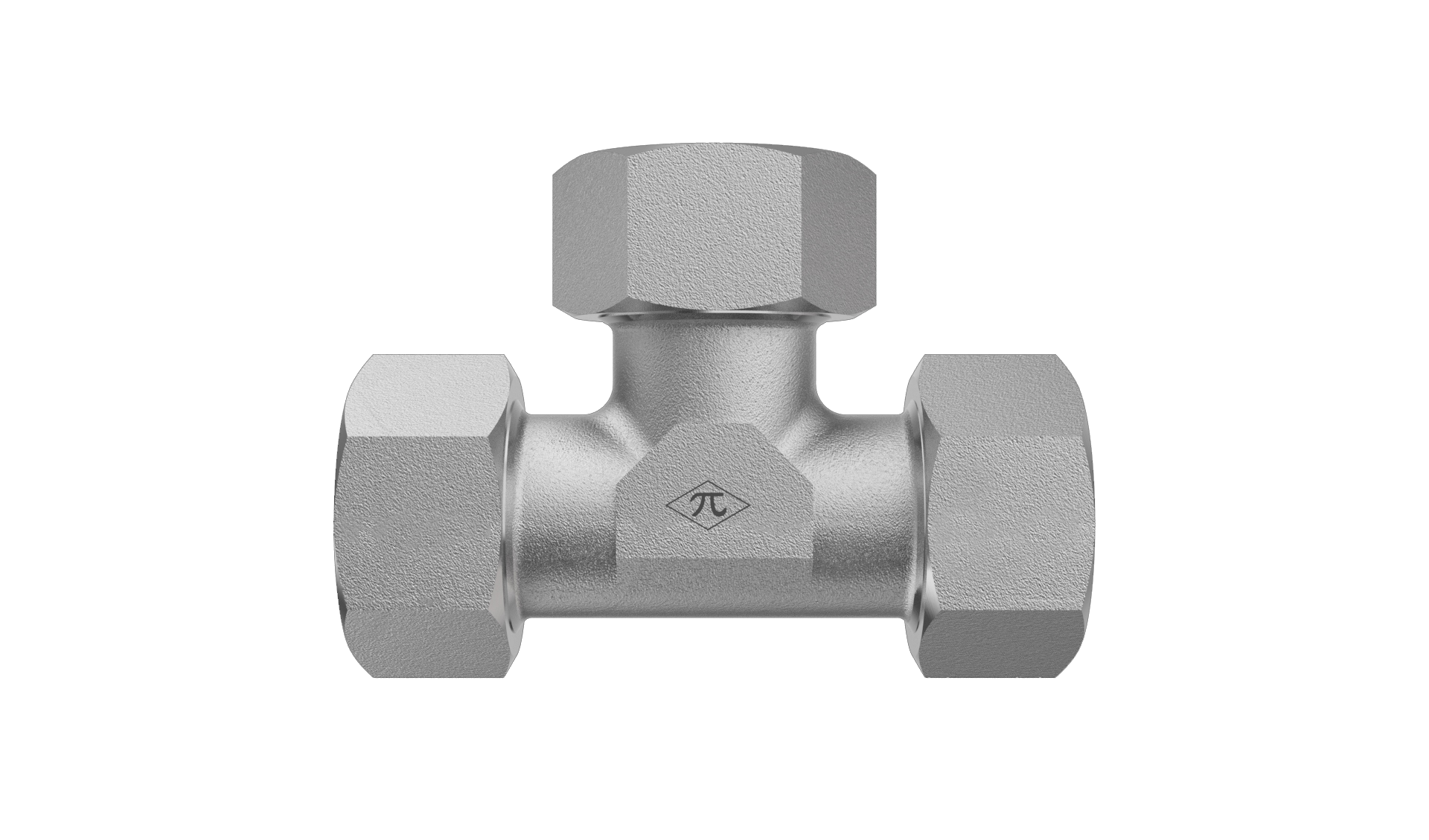

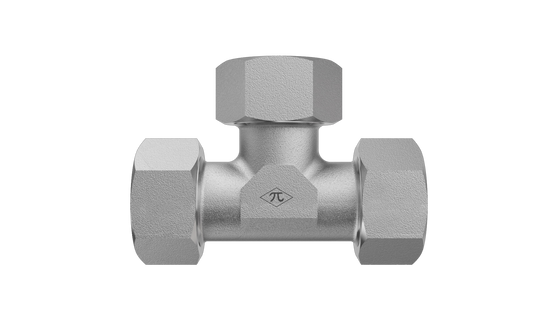

D2603-S16-S16-S16

16mm DIN Tube x 16mm DIN Tube x 16mm DIN Tube

D2603-S16-S16-S16 is a 16mm DIN Tube x 16mm DIN Tube x 16mm DIN Tube in the D2603-EQUAL Series. For branching three metric tubes or lines of equal size.

  • Steel
  • Trivalent Zinc
$57.44
(0) Write a Review
SKU:
D2603-S16-S16-S16

Product Details

Connection A
TypeDIN Tube
Tube OD16mm
StandardDIN 2353 / ISO 8434-1
Connection B
TypeDIN Tube
Tube OD16mm
StandardDIN 2353 / ISO 8434-1
Connection C
TypeDIN Tube
Tube OD16mm
StandardDIN 2353 / ISO 8434-1
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight1 lb
Cross References

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
