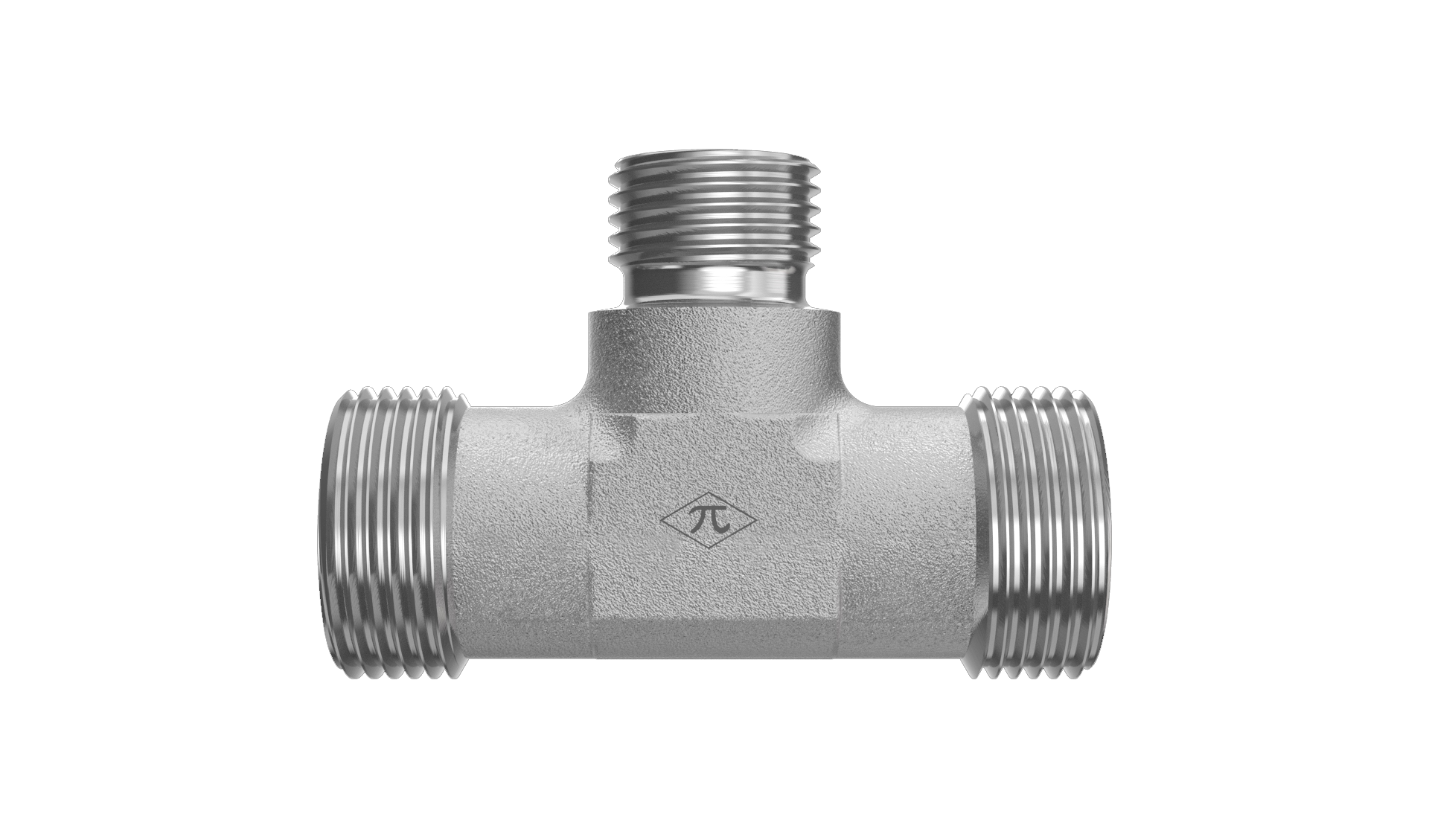

D2603-S25-S25-S12-SS-X

25mm Male DIN x 25mm Male DIN x 12mm Male DIN

D2603-S25-S25-S12-SS-X is a 25mm Male DIN x 25mm Male DIN x 12mm Male DIN in the D2603-REDUCER-X Series. For branching three metric tubes or lines of unequal size, already containing nuts and cutting rings.

  • Stainless Steel
  • Reducer Union Tee
  • None
$570.27
(0) Write a Review
SKU:
D2603-S25-S25-S12-SS-X

Product Details

Connection A
TypeMale DIN
Tube OD25mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM36X2.0
Connection B
TypeMale DIN
Tube OD25mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM36X2.0
Connection C
TypeMale DIN
Tube OD12mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM36X2.0
Connection D
Specifications
MaterialStainless Steel
Weight1.09 lb
ShapeReducer Union Tee
PlatingNone
Cross References
ParkerTR25/12/25S71X

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
