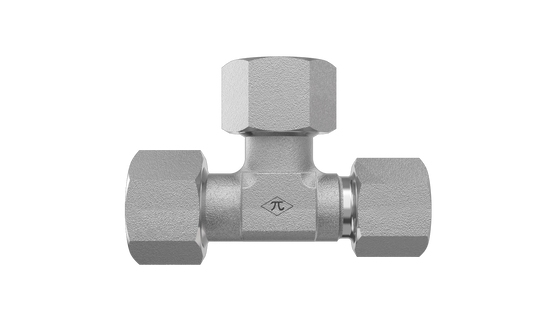

D2603-S38-S38-S16-SS

38mm DIN Tube x 38mm DIN Tube x 16mm DIN Tube

D2603-S38-S38-S16-SS is a 38mm DIN Tube x 38mm DIN Tube x 16mm DIN Tube in the D2603-REDUCER Series. For branching three metric tubes or lines of unequal size.

  • Stainless Steel
  • Reducer Union Tee
  • None
$1,424.92
(0) Write a Review
SKU:
D2603-S38-S38-S16-SS

Product Details

Connection A
TypeDIN Tube
Tube OD38mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM52X2.0
Connection B
TypeDIN Tube
Tube OD38mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM52X2.0
Connection C
TypeDIN Tube
Tube OD16mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM52X2.0
Connection D
Specifications
MaterialStainless Steel
Weight4.44 lb
ShapeReducer Union Tee
PlatingNone
Cross References
ParkerTR38/16/38S71

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
