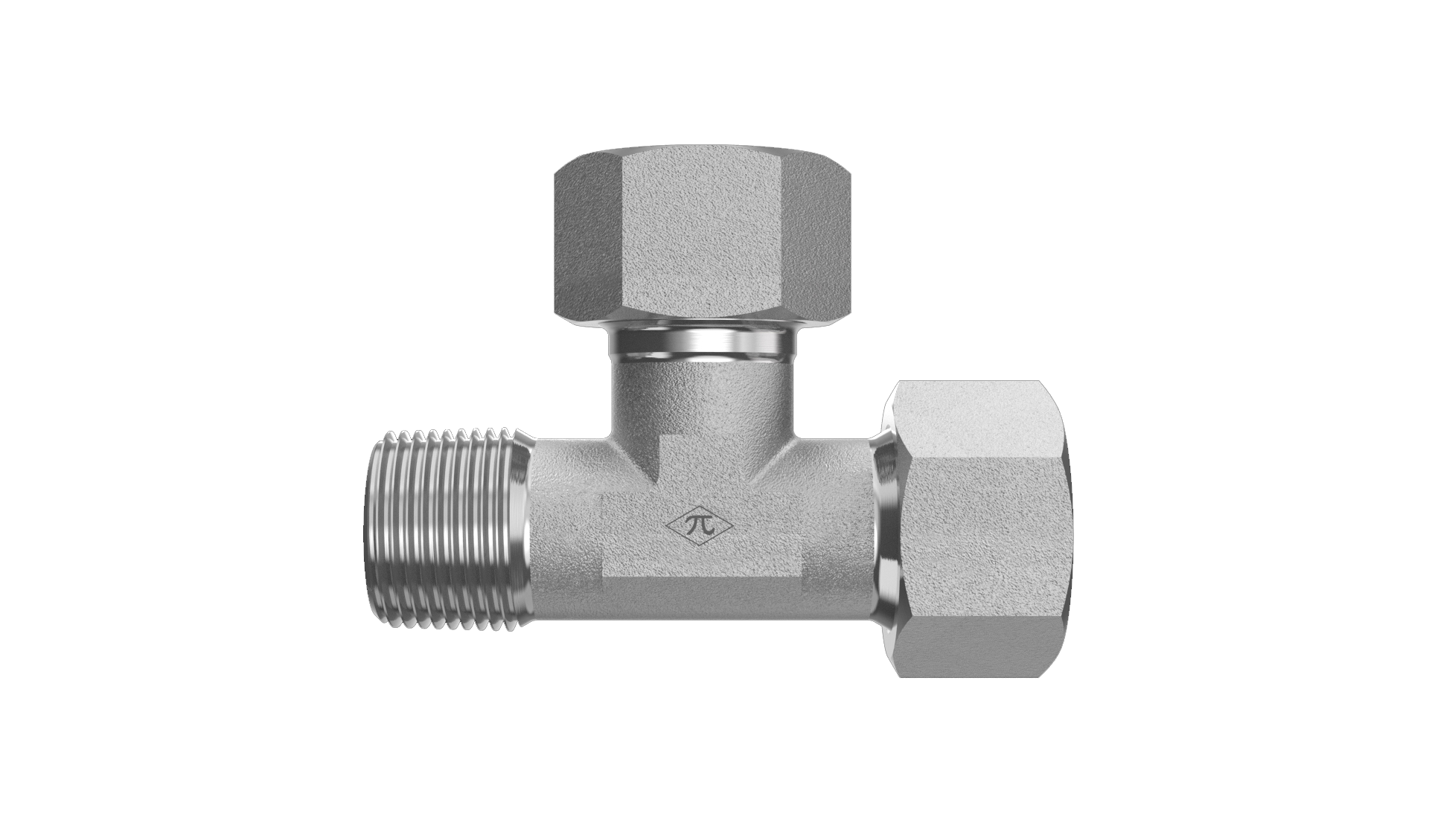

D2605-L10-04-L10-SS

10mm DIN Tube x 1/4" Male NPT x 10mm DIN Tube

D2605-L10-04-L10-SS is a 10mm DIN Tube x 1/4" Male NPT x 10mm DIN Tube in the D2605 Series. For branching two metric tubes or lines to a Female NPT connector on the run of the tee.

  • Stainless Steel
  • Male Run Tee
  • None
$147.53
(0) Write a Review
SKU:
D2605-L10-04-L10-SS

Product Details

Connection A
TypeDIN Tube
Tube OD10mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM16X1.5
Connection B
TypeMale NPT
Pipe Size1/4"
StandardANSI/ASME B1.20.1
Thread TypeM16X1.5
Connection C
TypeDIN Tube
Tube OD10mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM16X1.5
Connection D
Specifications
MaterialStainless Steel
Weight0.22 lb
ShapeMale Run Tee
PlatingNone
Cross References
ParkerLE10L1/4NPT71

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
