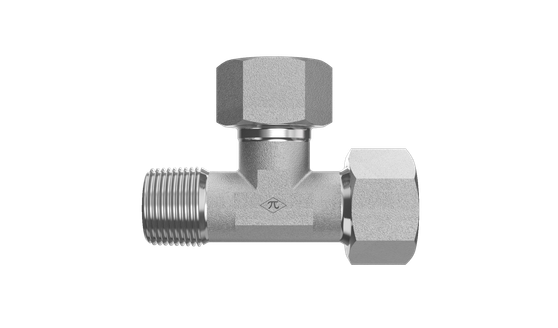

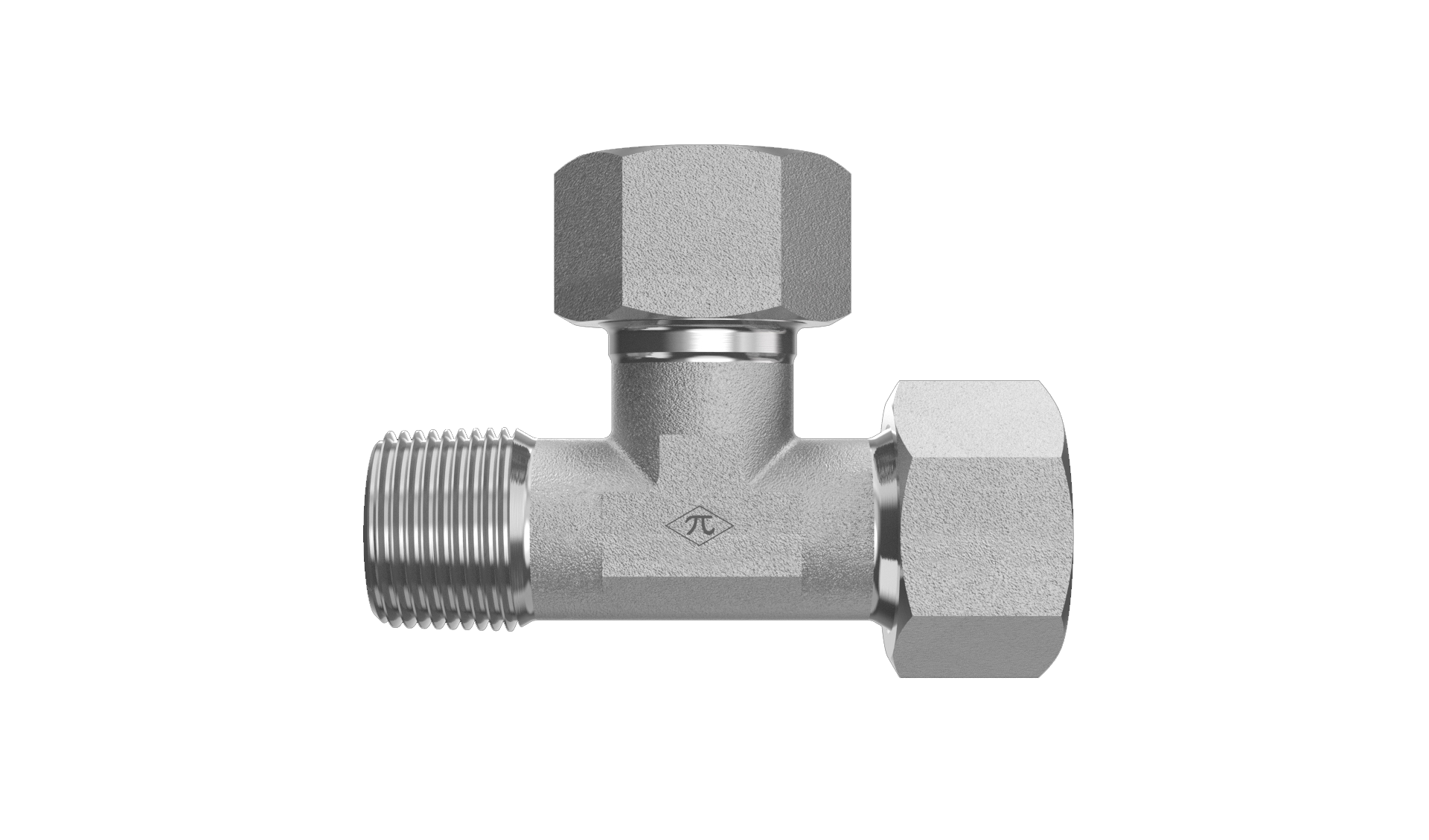

D2605 product image

D2605-S14-08-S14-SS

14mm DIN Tube x 1/2" Male NPT x 14mm DIN Tube

D2605-S14-08-S14-SS is a 14mm DIN Tube x 1/2" Male NPT x 14mm DIN Tube in the D2605 Series. For branching two metric tubes or lines to a Female NPT connector on the run of the tee.

  • Stainless Steel
  • Male Run Tee
  • None
$245.85
(0) Write a Review
SKU:
D2605-S14-08-S14-SS

Product Details

Connection A
TypeDIN Tube
Tube OD14mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM22X1.5
Connection B
TypeMale NPT
Pipe Size1/2"
StandardANSI/ASME B1.20.1
Thread TypeM22X1.5
Connection C
TypeDIN Tube
Tube OD14mm
StandardDIN 2353 / ISO 8434-1
Thread Type1/2-14
Connection D
Specifications
MaterialStainless Steel
Weight0.60 lb
ShapeMale Run Tee
PlatingNone
Cross References
ParkerLE14S1/2NPT71

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
