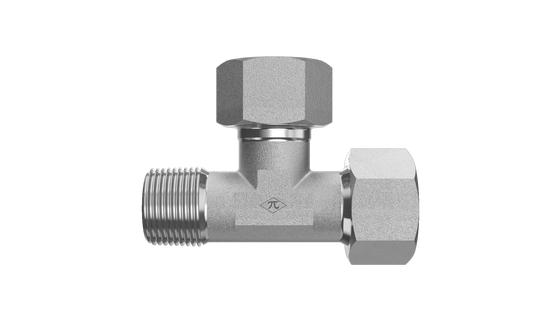

D2605 product image

D2605-S14-08-S14

14mm DIN Tube x 1/2" Male NPT x 14mm DIN Tube

D2605-S14-08-S14 is a 14mm DIN Tube x 1/2" Male NPT x 14mm DIN Tube in the D2605 Series. For branching two metric tubes or lines to a Female NPT connector on the run of the tee.

  • Steel
  • Zinc Nickel
  • Male Run Tee
$118.70
(0) Write a Review
SKU:
D2605-S14-08-S14

Product Details

Connection A
TypeDIN Tube
Tube OD14mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM22X1.5
Connection B
TypeMale NPT
Pipe Size1/2"
StandardANSI/ASME B1.20.1
Thread TypeM22X1.5
Connection C
TypeDIN Tube
Tube OD14mm
StandardDIN 2353 / ISO 8434-1
Thread Type1/2-14
Connection D
Specifications
MaterialSteel
PlatingZinc Nickel
Weight0.59 lb
ShapeMale Run Tee
Cross References
ParkerLE14S1/2NPTCF

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
