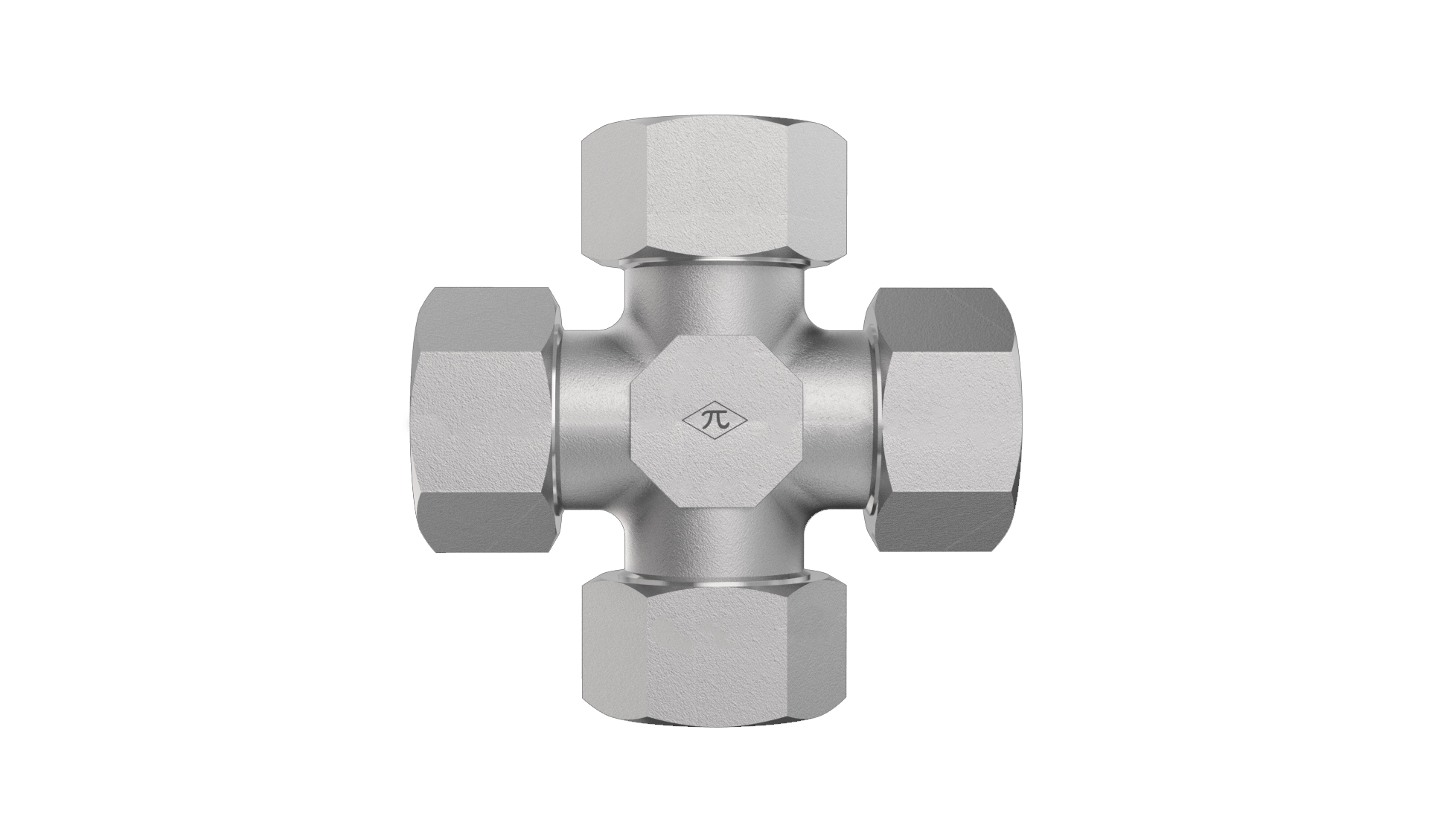

D2650 product image

D2650-L12-L12-L12-L12-SS

12mm DIN Tube x 12mm DIN Tube x 12mm DIN Tube x 12mm DIN Tube

D2650-L12-L12-L12-L12-SS is a 12mm DIN Tube x 12mm DIN Tube x 12mm DIN Tube x 12mm DIN Tube in the D2650 Series. For branching four metric tubes or lines of equal size.

  • Stainless Steel
  • None
$266.16
(0) Write a Review
SKU:
D2650-L12-L12-L12-L12-SS

Product Details

Connection A
TypeDIN Tube
Tube OD12mm
StandardDIN 2353 / ISO 8434-1
Connection B
TypeDIN Tube
Tube OD12mm
StandardDIN 2353 / ISO 8434-1
Connection C
TypeDIN Tube
Tube OD12mm
StandardDIN 2353 / ISO 8434-1
Connection D
TypeDIN Tube
Tube OD12mm
StandardDIN 2353 / ISO 8434-1
Specifications
MaterialStainless Steel
Weight1 lb
PlatingNone
Cross References

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
