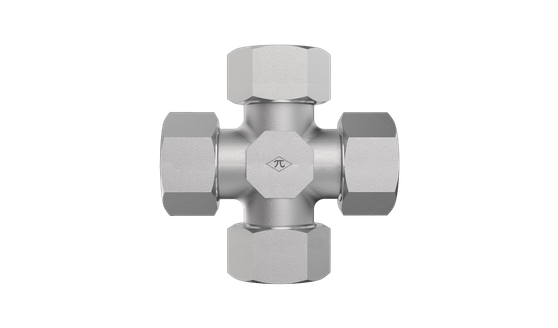

D2650-L42-L42-L42-L42-SS-X

42mm Male DIN x 42mm Male DIN x 42mm Male DIN x 42mm Male DIN

D2650-L42-L42-L42-L42-SS-X is a 42mm Male DIN x 42mm Male DIN x 42mm Male DIN x 42mm Male DIN in the D2650-X Series. For branching four metric tubes or lines of equal size, already containing nuts and cutting rings.

  • Stainless Steel
  • Union Cross
  • None
$1,372.89
(0) Write a Review
SKU:
D2650-L42-L42-L42-L42-SS-X

Product Details

Connection A
TypeMale DIN
Tube OD42mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM52X2.0
Connection B
TypeMale DIN
Tube OD42mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM52X2.0
Connection C
TypeMale DIN
Tube OD42mm
StandardDIN 2353 / ISO 8434-1
Thread TypeDIN 2353, ISO 8434-1
Connection D
TypeMale DIN
Tube OD42mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM52X2.0
Specifications
MaterialStainless Steel
Weight1.93 lb
ShapeUnion Cross
PlatingNone
Cross References
ParkerKV42L71X

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
