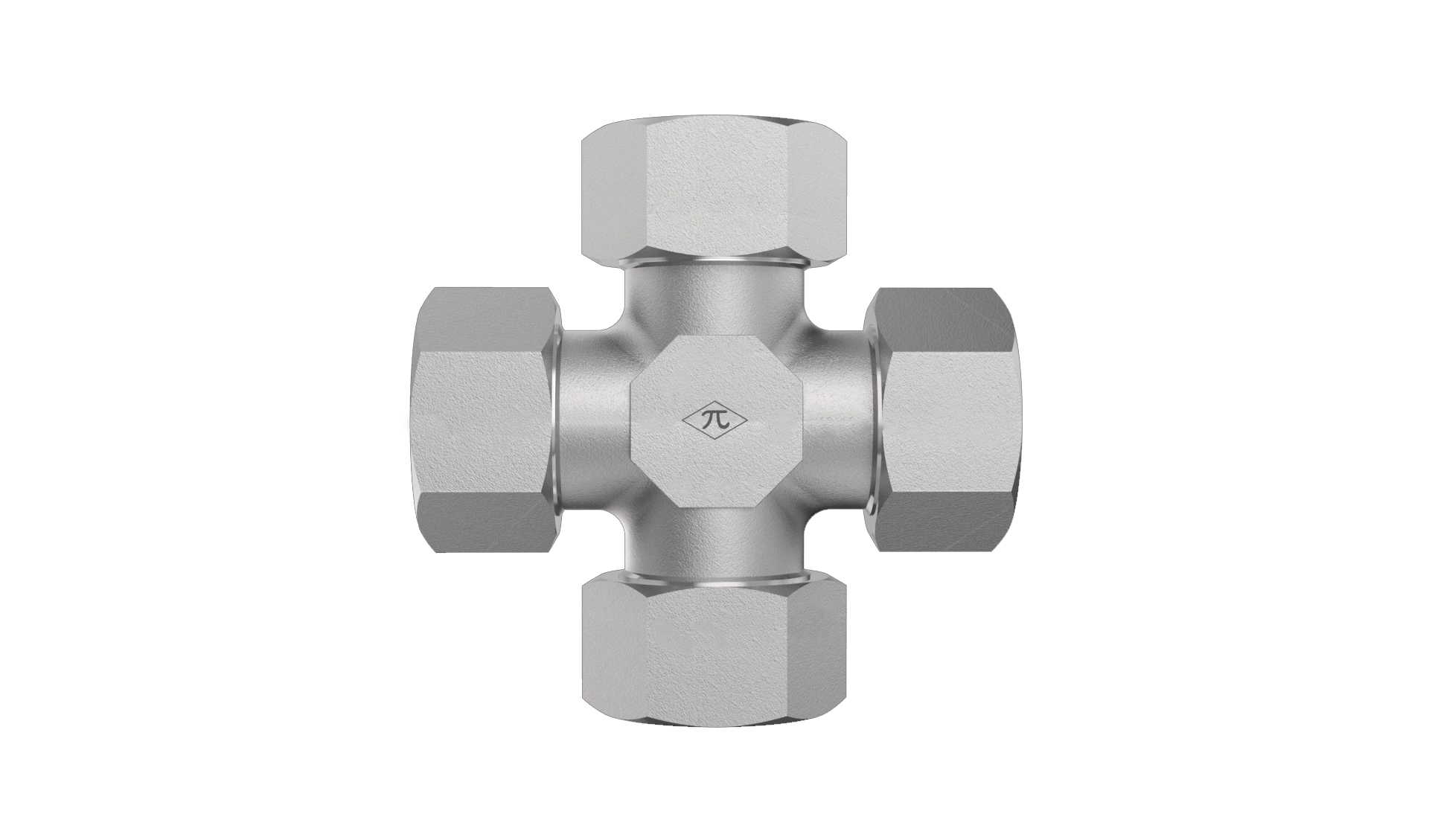

D2650 product image

D2650-S06-S06-S06-S06-SS

6mm DIN Tube x 6mm DIN Tube x 6mm DIN Tube x 6mm DIN Tube

D2650-S06-S06-S06-S06-SS is a 6mm DIN Tube x 6mm DIN Tube x 6mm DIN Tube x 6mm DIN Tube in the D2650 Series. For branching four metric tubes or lines of equal size.

  • Stainless Steel
  • Union Cross
  • None
$200.36
(0) Write a Review
SKU:
D2650-S06-S06-S06-S06-SS

Product Details

Connection A
TypeDIN Tube
Tube OD6mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM14X1.5
Connection B
TypeDIN Tube
Tube OD6mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM14X1.5
Connection C
TypeDIN Tube
Tube OD6mm
StandardDIN 2353 / ISO 8434-1
Thread TypeDIN 2353, ISO 8434-1
Connection D
TypeDIN Tube
Tube OD6mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM14X1.5
Specifications
MaterialStainless Steel
Weight0.33 lb
ShapeUnion Cross
PlatingNone
Cross References
ParkerKV06S71

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
