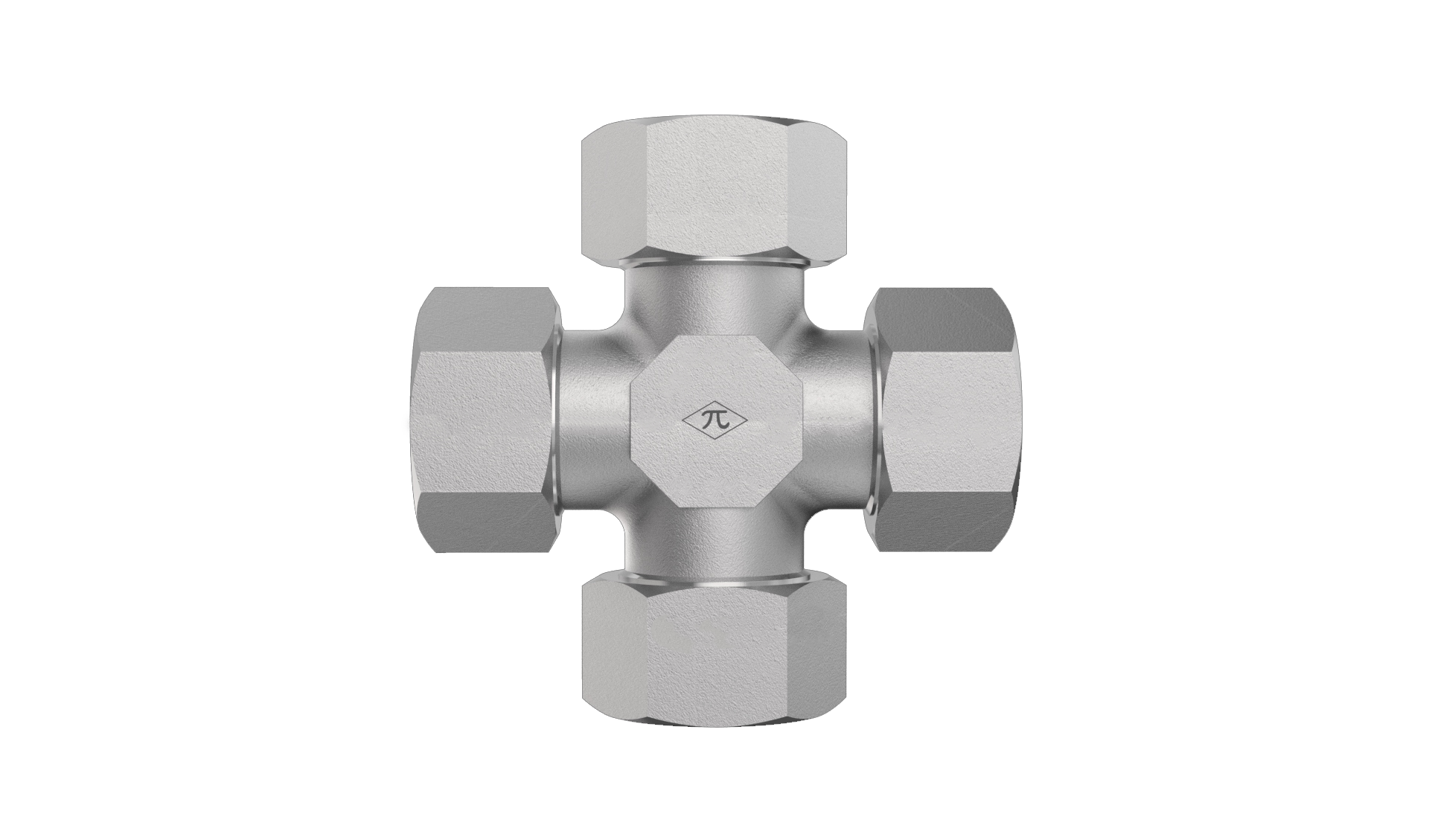

D2650 product image

D2650-S10-S10-S10-S10

10mm DIN Tube x 10mm DIN Tube x 10mm DIN Tube x 10mm DIN Tube

D2650-S10-S10-S10-S10 is a 10mm DIN Tube x 10mm DIN Tube x 10mm DIN Tube x 10mm DIN Tube in the D2650 Series. For branching four metric tubes or lines of equal size.

  • Steel
  • Zinc Nickel
  • Union Cross
$96.78
(0) Write a Review
SKU:
D2650-S10-S10-S10-S10

Product Details

Connection A
TypeDIN Tube
Tube OD10mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM18X1.5
Connection B
TypeDIN Tube
Tube OD10mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM18X1.5
Connection C
TypeDIN Tube
Tube OD10mm
StandardDIN 2353 / ISO 8434-1
Thread TypeDIN 2353, ISO 8434-1
Connection D
TypeDIN Tube
Tube OD10mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM18X1.5
Specifications
MaterialSteel
PlatingZinc Nickel
Weight0.55 lb
ShapeUnion Cross
Cross References
ParkerK10SCF

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
