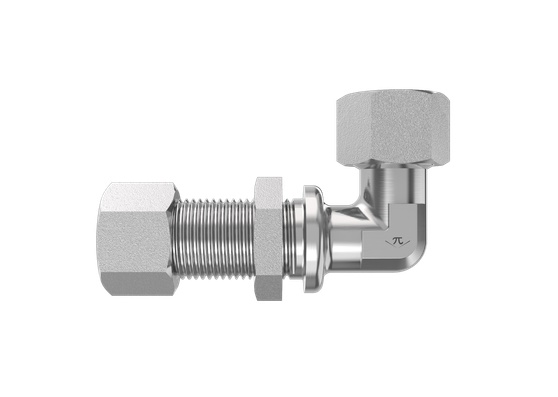

D2701-LN-L18-L18

18mm DIN Tube x 18mm DIN Tube

D2701-LN-L18-L18 is a 18mm DIN Tube x 18mm DIN Tube in the D2701-LN Series. For connecting two metric tubes or lines, that connect through panels or walls at a 90° angle.

  • Steel
  • Zinc Nickel
  • Bulkhead Elbow
$62.16
(0) Write a Review
SKU:
D2701-LN-L18-L18

Product Details

Connection A
TypeDIN Tube
Tube OD18mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM26X1.5
Connection B
TypeDIN Tube
Tube OD18mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM26X1.5
Connection C
Connection D
Specifications
MaterialSteel
PlatingZinc Nickel
Weight0.88 lb
ShapeBulkhead Elbow
Cross References
ParkerWSV18LCF

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
