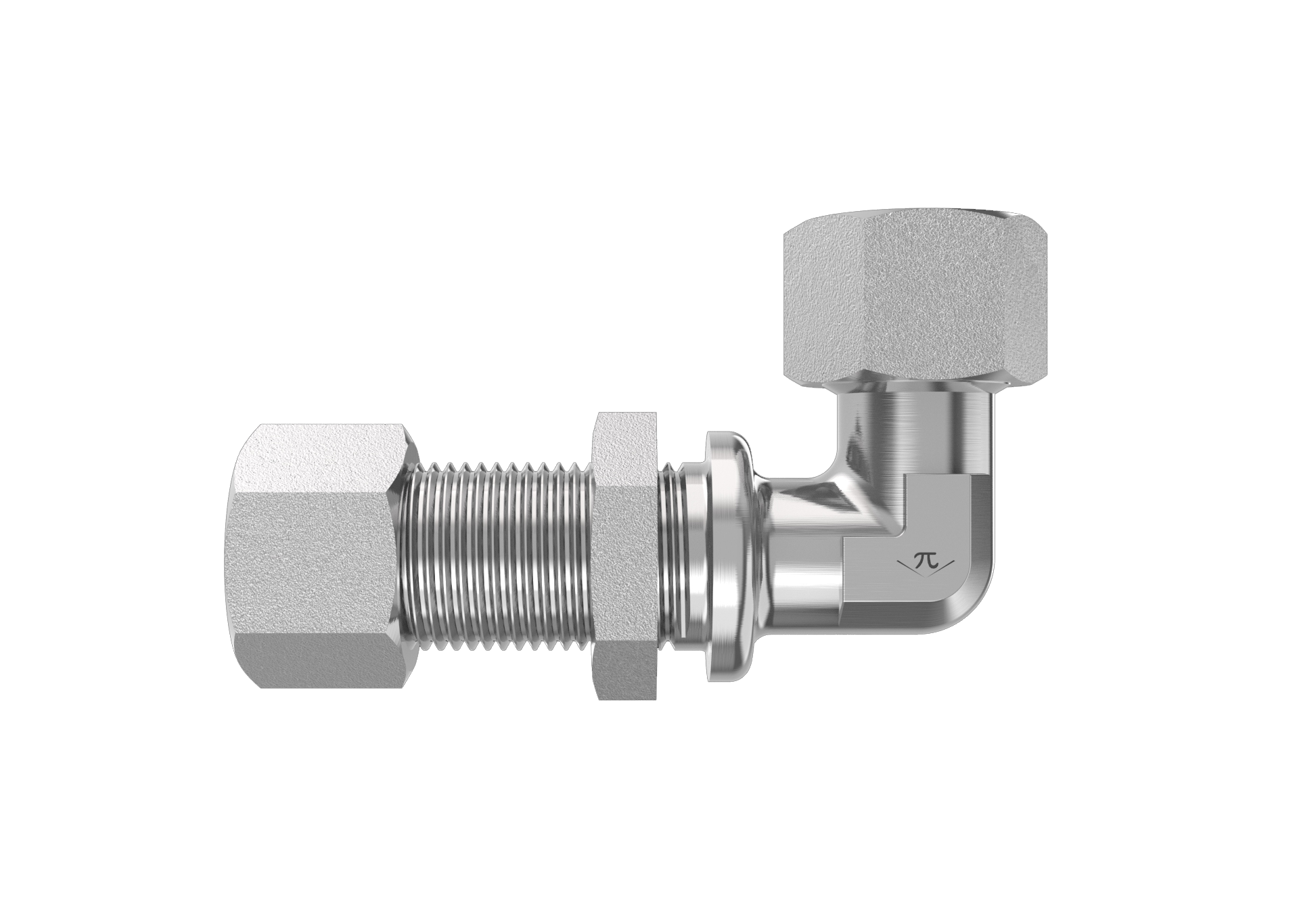

D2701-LN-L35-L35-SS

35mm DIN Tube x 35mm DIN Tube

D2701-LN-L35-L35-SS is a 35mm DIN Tube x 35mm DIN Tube in the D2701-LN Series. For connecting two metric tubes or lines, that connect through panels or walls at a 90° angle.

  • Stainless Steel
  • Bulkhead Elbow
  • None
$983.37
(0) Write a Review
SKU:
D2701-LN-L35-L35-SS

Product Details

Connection A
TypeDIN Tube
Tube OD35mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM45X2.0
Connection B
TypeDIN Tube
Tube OD35mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM45X2.0
Connection C
Connection D
Specifications
MaterialStainless Steel
Weight2.56 lb
ShapeBulkhead Elbow
PlatingNone
Cross References
ParkerWSV35L71

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
