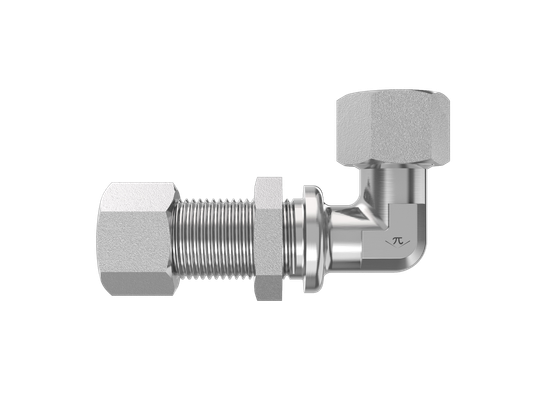

D2701-LN-S16-S16

16mm DIN Tube x 16mm DIN Tube

D2701-LN-S16-S16 is a 16mm DIN Tube x 16mm DIN Tube in the D2701-LN Series. For connecting two metric tubes or lines, that connect through panels or walls at a 90° angle.

  • Steel
  • Zinc Nickel
  • Bulkhead Elbow
$61.76
(0) Write a Review
SKU:
D2701-LN-S16-S16

Product Details

Connection A
TypeDIN Tube
Tube OD16mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM24X1.5
Connection B
TypeDIN Tube
Tube OD16mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM24X1.5
Connection C
Connection D
Specifications
MaterialSteel
PlatingZinc Nickel
Weight0.90 lb
ShapeBulkhead Elbow
Cross References
ParkerWSV16SCF

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
