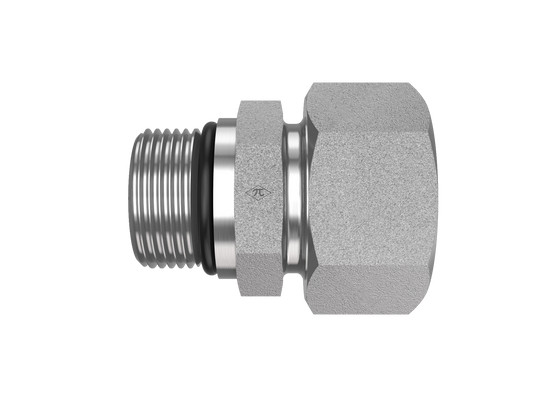

D6400-O-X series product image

D6400-L15-08-O-X

15mm Male DIN x 3/4-16 Male ORB

D6400-L15-08-O-X is a 15mm Male DIN x 3/4-16 Male ORB in the D6400-O-X Series. For connecting metric tube or line, already containg nut and cutting ring, to a female SAE/O-Ring Boss port.

  • Steel
  • Zinc Nickel
  • Male Connector
$43.35
(0) Write a Review
SKU:
D6400-L15-08-O-X

Product Details

Connection A
TypeMale DIN
Tube OD15mm
StandardDIN 2353
Thread TypeM22X1.5
Connection B
TypeMale ORB
Port Size3/4-16
StandardSAE J1926
Thread TypeM22X1.5
Connection C
Connection D
Specifications
MaterialSteel
PlatingZinc Nickel
Weight0.13 lb
ShapeMale Connector
Cross References
ParkerGE15L3/4UNFOMDCF

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
