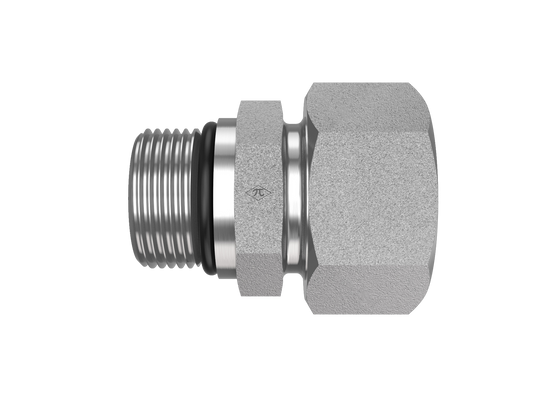

D6400-S08-04-O-SS-X

8mm Male DIN x 7/16-20 Male ORB

D6400-S08-04-O-SS-X is a 8mm Male DIN x 7/16-20 Male ORB in the D6400-O-X Series. For connecting metric tube or line, already containg nut and cutting ring, to a female SAE/O-Ring Boss port.

  • Stainless Steel
  • Male Connector
  • None
$78.54
(0) Write a Review
SKU:
D6400-S08-04-O-SS-X

Product Details

Connection A
TypeMale DIN
Tube OD8mm
StandardDIN 2353
Thread TypeM16X1.5
Connection B
TypeMale ORB
Port Size7/16-20
StandardSAE J1926
Thread TypeM16X1.5
Connection C
Connection D
Specifications
MaterialStainless Steel
Weight0.08 lb
ShapeMale Connector
PlatingNone
Cross References
ParkerGE08S7/16UNFOMD71

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
