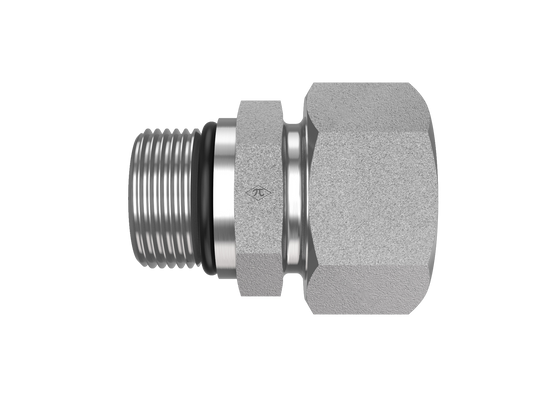

D6400-S10-06-O-SS-X

10mm Male DIN x 9/16-18 Male ORB

D6400-S10-06-O-SS-X is a 10mm Male DIN x 9/16-18 Male ORB in the D6400-O-X Series. For connecting metric tube or line, already containg nut and cutting ring, to a female SAE/O-Ring Boss port.

  • Stainless Steel
  • Male Connector
  • None
$92.24
(0) Write a Review
SKU:
D6400-S10-06-O-SS-X

Product Details

Connection A
TypeMale DIN
Tube OD10mm
StandardDIN 2353
Thread TypeM18X1.5
Connection B
TypeMale ORB
Port Size9/16-18
StandardSAE J1926
Thread TypeM18X1.5
Connection C
Connection D
Specifications
MaterialStainless Steel
Weight0.11 lb
ShapeMale Connector
PlatingNone
Cross References
ParkerGE10S9/16UNFOMD71

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
