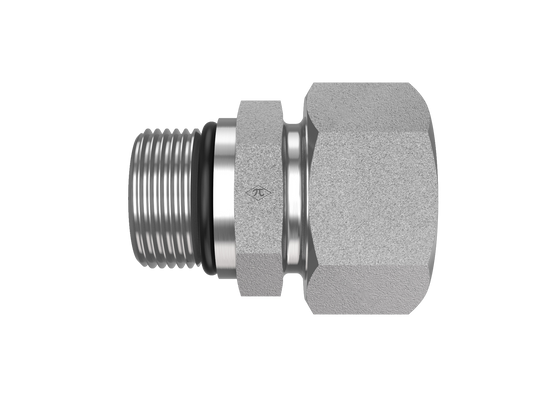

D6400-S16-12-O-X

16mm Male DIN x 1-1/16-12 Male ORB

D6400-S16-12-O-X is a 16mm Male DIN x 1-1/16-12 Male ORB in the D6400-O-X Series. For connecting metric tube or line, already containg nut and cutting ring, to a female SAE/O-Ring Boss port.

  • Steel
  • Zinc Nickel
  • Male Connector
$109.10
(0) Write a Review
SKU:
D6400-S16-12-O-X

Product Details

Connection A
TypeMale DIN
Tube OD16mm
StandardDIN 2353
Thread TypeM24X1.5
Connection B
TypeMale ORB
Port Size1-1/16-12
StandardSAE J1926
Thread TypeM24X1.5
Connection C
Connection D
Specifications
MaterialSteel
PlatingZinc Nickel
Weight0.37 lb
ShapeMale Connector
Cross References
ParkerGE16S11/16UNOMDCF

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
