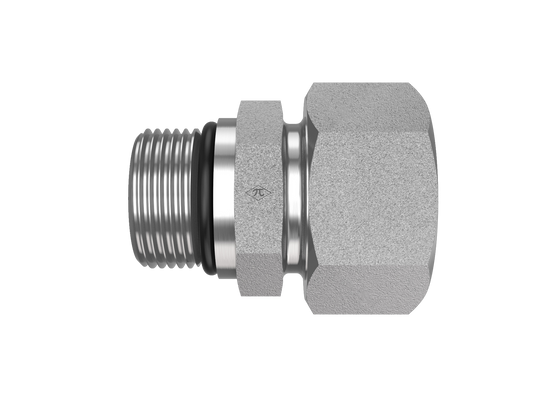

D6400-O-X series product image

D6400-S20-16-O-X

20mm Male DIN x 1-5/16-12 Male ORB

D6400-S20-16-O-X is a 20mm Male DIN x 1-5/16-12 Male ORB in the D6400-O-X Series. For connecting metric tube or line, already containg nut and cutting ring, to a female SAE/O-Ring Boss port.

  • Steel
  • Zinc Nickel
  • Male Connector
$155.45
(0) Write a Review
SKU:
D6400-S20-16-O-X

Product Details

Connection A
TypeMale DIN
Tube OD20mm
StandardDIN 2353
Thread TypeM30X2.0
Connection B
TypeMale ORB
Port Size1-5/16-12
StandardSAE J1926
Thread TypeM30X2.0
Connection C
Connection D
Specifications
MaterialSteel
PlatingZinc Nickel
Weight0.54 lb
ShapeMale Connector
Cross References
ParkerGE20S15/16UNOMDCF

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
