D6500-L06-L06-SS-X

6mm Male DIN x 6mm Female Metric Swivel

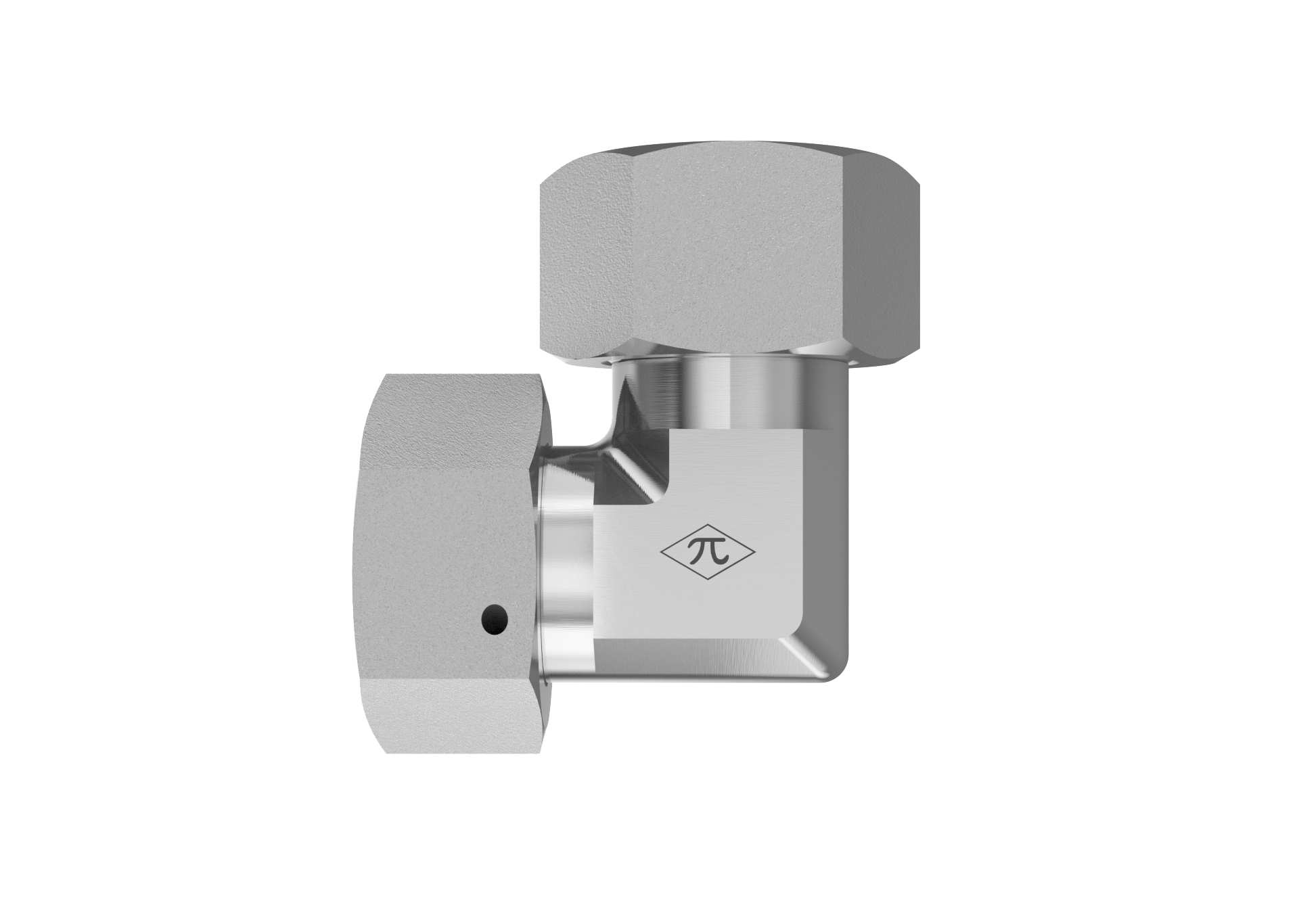

D6500-L06-L06-SS-X is a 6mm Male DIN x 6mm Female Metric Swivel in the D6500-X Series. For connecting metric tube or line, already containing nut and cutting ring, to a male DIN 2353 connection at a 90° angle.

  • Stainless Steel
  • Swivel Elbow
  • None
$57.80
(0) Write a Review
SKU:
D6500-L06-L06-SS-X

Product Details

Connection A
TypeMale DIN
Tube OD6mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM12X1.5
Connection B
TypeFemale Metric Swivel
Size6mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM12X1.5
Connection C
Connection D
Specifications
MaterialStainless Steel
Weight0.10 lb
ShapeSwivel Elbow
PlatingNone
Cross References
ParkerEW06LOMD71

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
