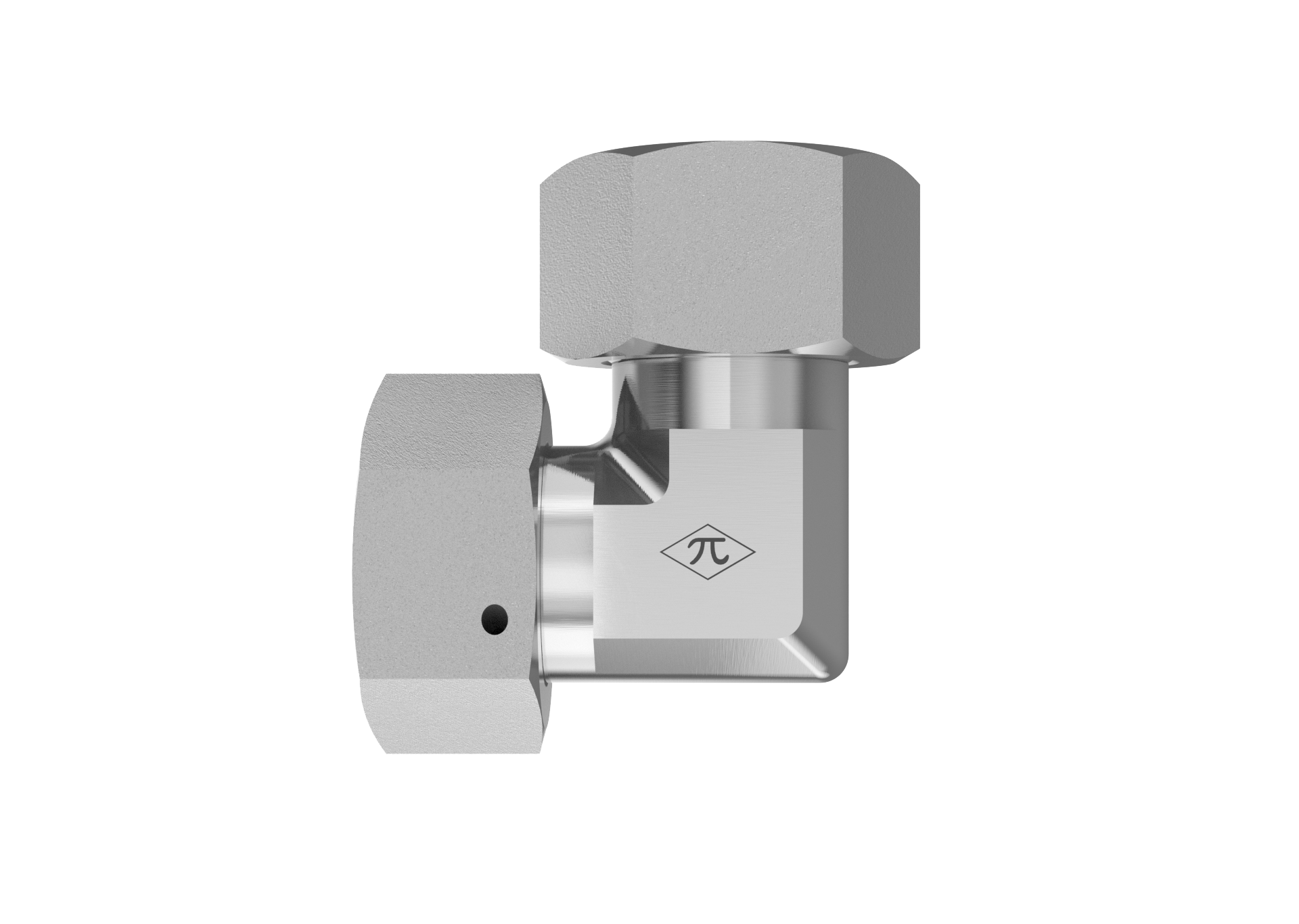

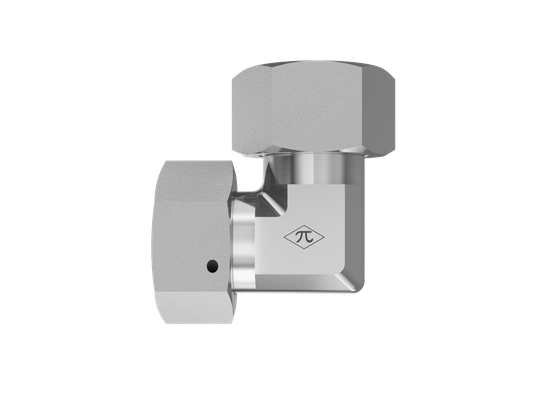

D6500-L12-L12-SS-X

12mm Male DIN x 12mm Female Metric Swivel

D6500-L12-L12-SS-X is a 12mm Male DIN x 12mm Female Metric Swivel in the D6500-X Series. For connecting metric tube or line, already containing nut and cutting ring, to a male DIN 2353 connection at a 90° angle.

  • Stainless Steel
  • Swivel Elbow
  • None
$127.02
(0) Write a Review
SKU:
D6500-L12-L12-SS-X

Product Details

Connection A
TypeMale DIN
Tube OD12mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM18X1.5
Connection B
TypeFemale Metric Swivel
Size12mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM18X1.5
Connection C
Connection D
Specifications
MaterialStainless Steel
Weight0.17 lb
ShapeSwivel Elbow
PlatingNone
Cross References
ParkerEW12LOMD71

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
