D6500-L15-L15

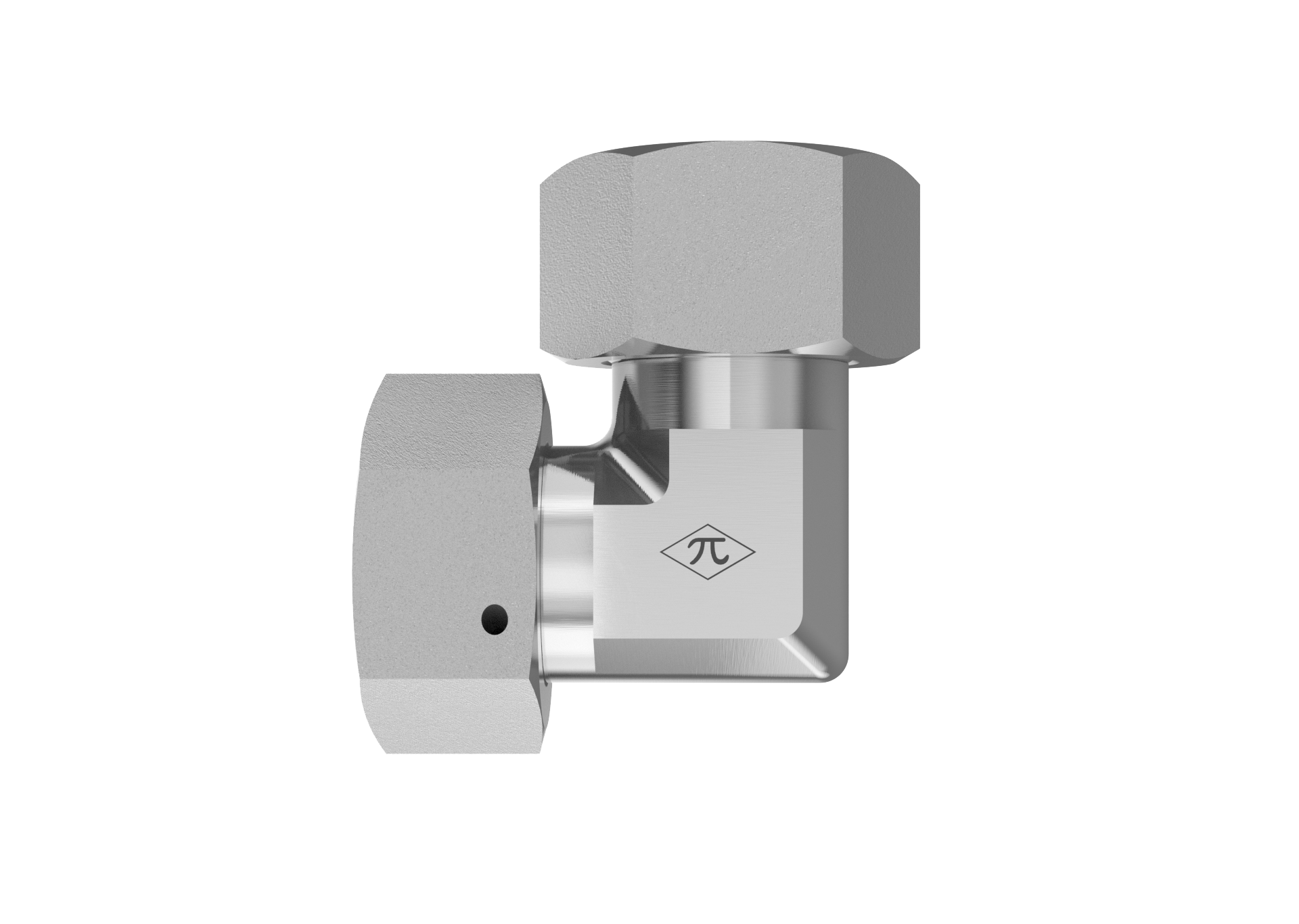

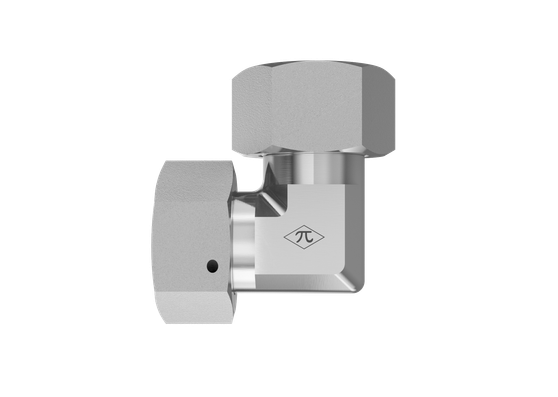

15mm DIN Tube x 15mm Female Metric Swivel

D6500-L15-L15 is a 15mm DIN Tube x 15mm Female Metric Swivel in the D6500 Series. For connecting metric tube or line to a male DIN 2353 connection at a 90° angle.

  • Steel
  • Zinc Nickel
  • Swivel Elbow
$30.89
(0) Write a Review
SKU:
D6500-L15-L15

Product Details

Connection A
TypeDIN Tube
Tube OD15mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM22X1.5
Connection B
TypeFemale Metric Swivel
Size15mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM22X1.5
Connection C
Connection D
Specifications
MaterialSteel
PlatingZinc Nickel
Weight0.39 lb
ShapeSwivel Elbow
Cross References
ParkerEW15LCF

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
