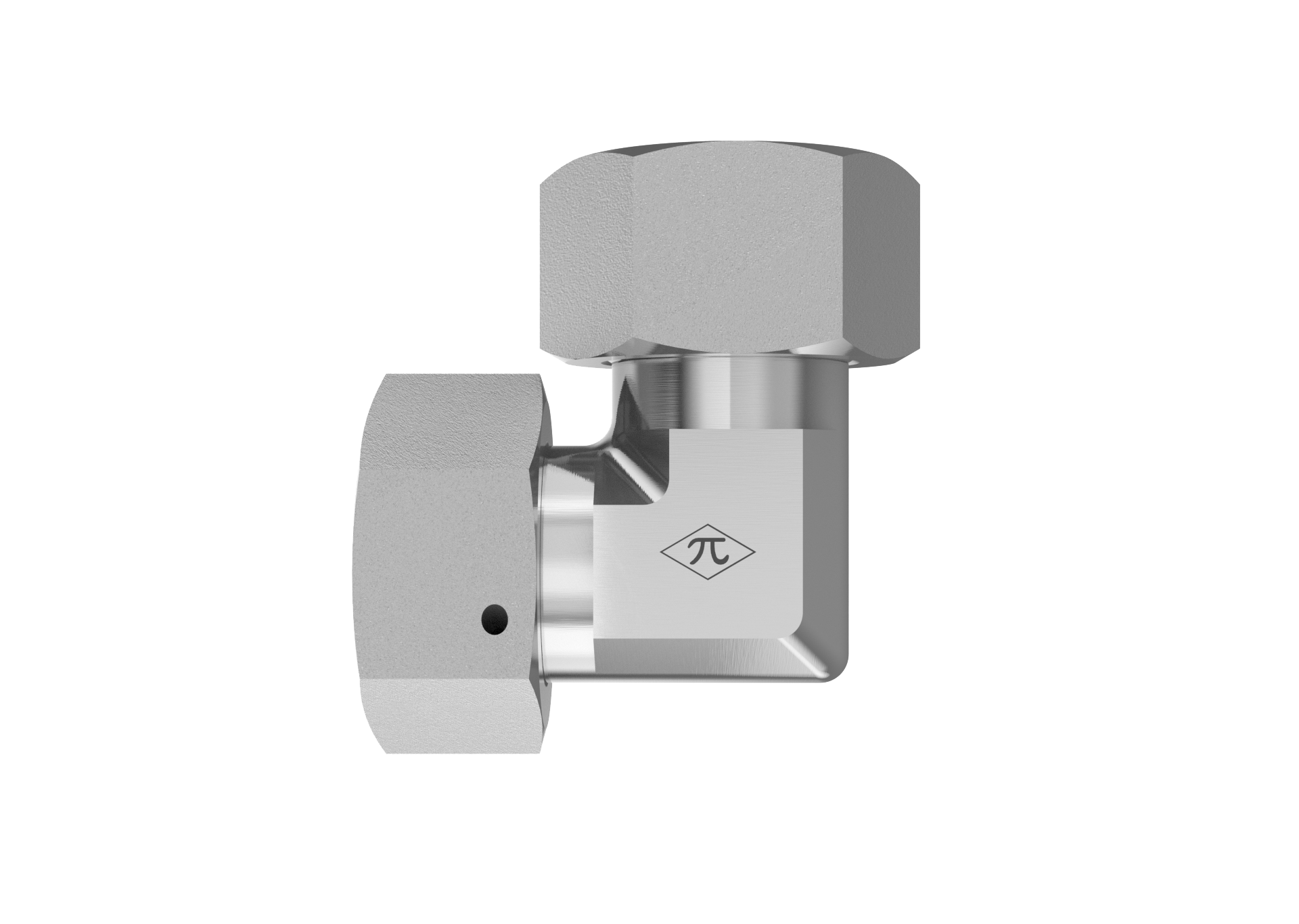

D6500-L18-L18

18mm DIN Tube x 18mm Female Metric Swivel

D6500-L18-L18 is a 18mm DIN Tube x 18mm Female Metric Swivel in the D6500 Series. For connecting metric tube or line to a male DIN 2353 connection at a 90° angle.

  • Steel
  • Zinc Nickel
  • Swivel Elbow
$44.85
(0) Write a Review
SKU:
D6500-L18-L18

Product Details

Connection A
TypeDIN Tube
Tube OD18mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM26X1.5
Connection B
TypeFemale Metric Swivel
Size18mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM26X1.5
Connection C
Connection D
Specifications
MaterialSteel
PlatingZinc Nickel
Weight0.55 lb
ShapeSwivel Elbow
Cross References
ParkerEW18LCF

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
