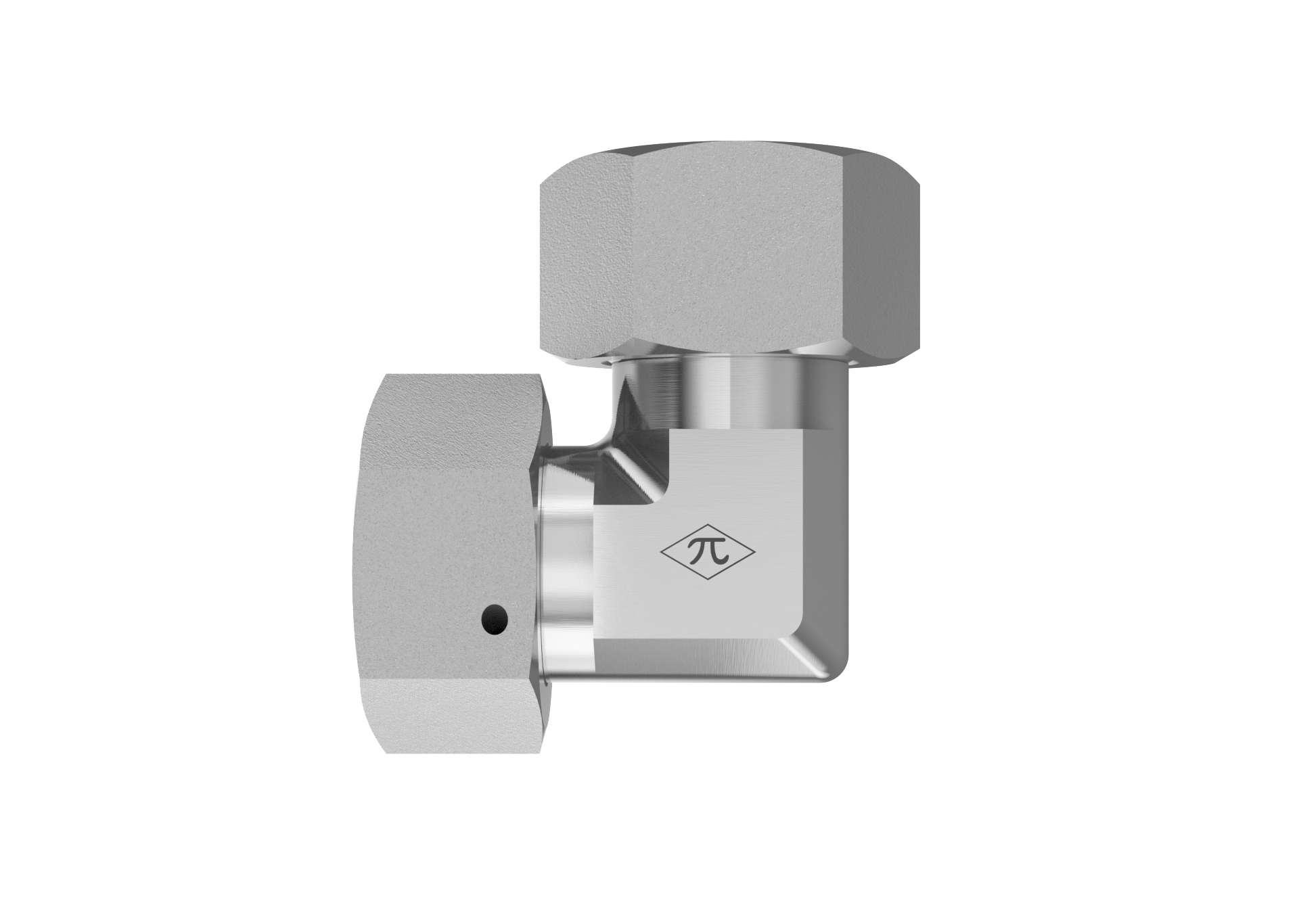

D6500-L42-L42-SS-X

42mm Male DIN x 42mm Female Metric Swivel

D6500-L42-L42-SS-X is a 42mm Male DIN x 42mm Female Metric Swivel in the D6500-X Series. For connecting metric tube or line, already containing nut and cutting ring, to a male DIN 2353 connection at a 90° angle.

  • Stainless Steel
  • Swivel Elbow
  • None
$556.20
(0) Write a Review
SKU:
D6500-L42-L42-SS-X

Product Details

Connection A
TypeMale DIN
Tube OD42mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM52X2.0
Connection B
TypeFemale Metric Swivel
Size42mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM52X2.0
Connection C
Connection D
Specifications
MaterialStainless Steel
Weight0.91 lb
ShapeSwivel Elbow
PlatingNone
Cross References
ParkerEW42LOMD71

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
