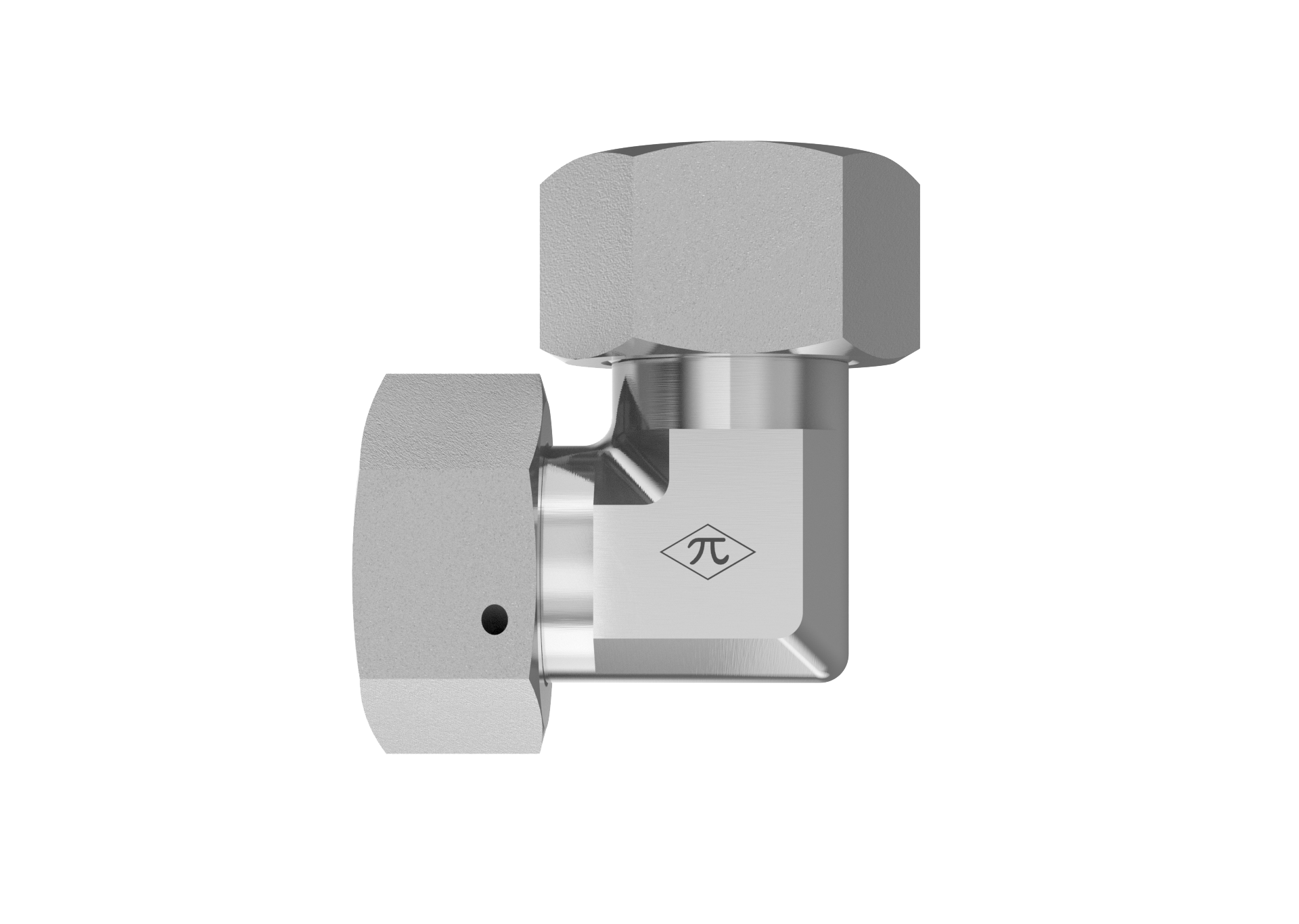

D6500-S16-S16-SS

16mm DIN Tube x 16mm Female Metric Swivel

D6500-S16-S16-SS is a 16mm DIN Tube x 16mm Female Metric Swivel in the D6500 Series. For connecting metric tube or line to a male DIN 2353 connection at a 90° angle.

  • Stainless Steel
  • Swivel Elbow
  • None
$311.37
(0) Write a Review
SKU:
D6500-S16-S16-SS

Product Details

Connection A
TypeDIN Tube
Tube OD16mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM24X1.5
Connection B
TypeFemale Metric Swivel
Size16mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM24X1.5
Connection C
Connection D
Specifications
MaterialStainless Steel
Weight0.60 lb
ShapeSwivel Elbow
PlatingNone
Cross References
ParkerEW16S71

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
