D6500-S25-S25

25mm DIN Tube x 25mm Female Metric Swivel

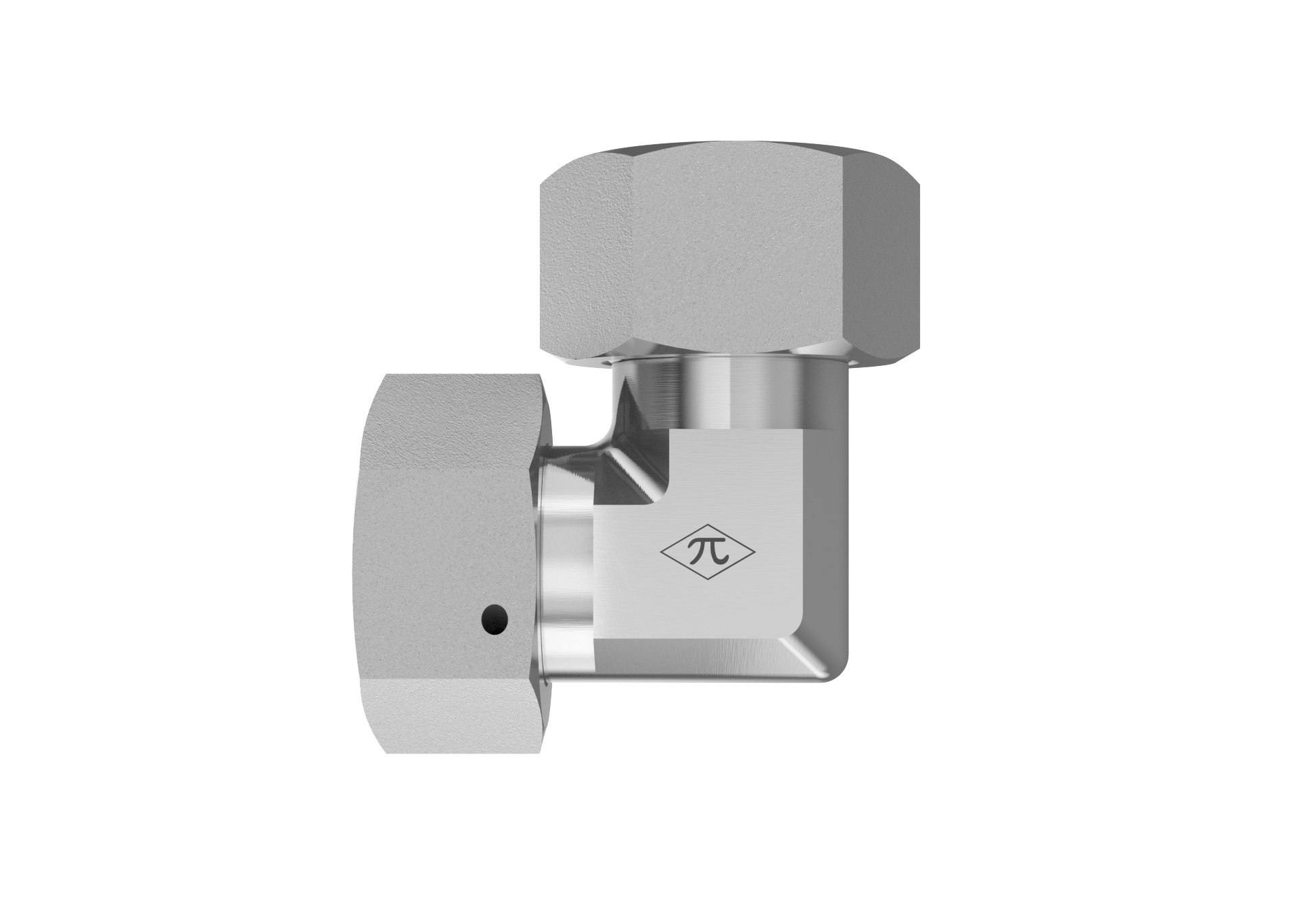

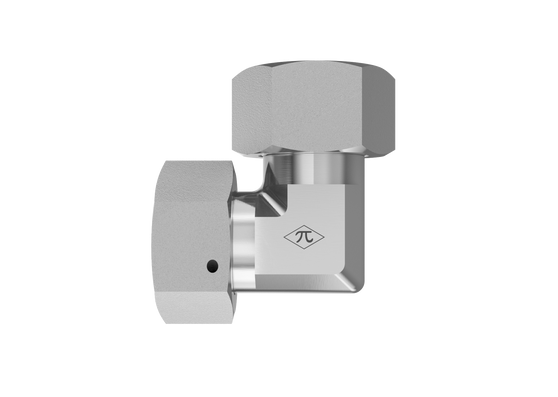

D6500-S25-S25 is a 25mm DIN Tube x 25mm Female Metric Swivel in the D6500 Series. For connecting metric tube or line to a male DIN 2353 connection at a 90° angle.

  • Steel
  • Zinc Nickel
  • Swivel Elbow
$99.09
(0) Write a Review
SKU:
D6500-S25-S25

Product Details

Connection A
TypeDIN Tube
Tube OD25mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM36X2.0
Connection B
TypeFemale Metric Swivel
Size25mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM36X2.0
Connection C
Connection D
Specifications
MaterialSteel
PlatingZinc Nickel
Weight1.74 lb
ShapeSwivel Elbow
Cross References
ParkerEW25SCF

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
