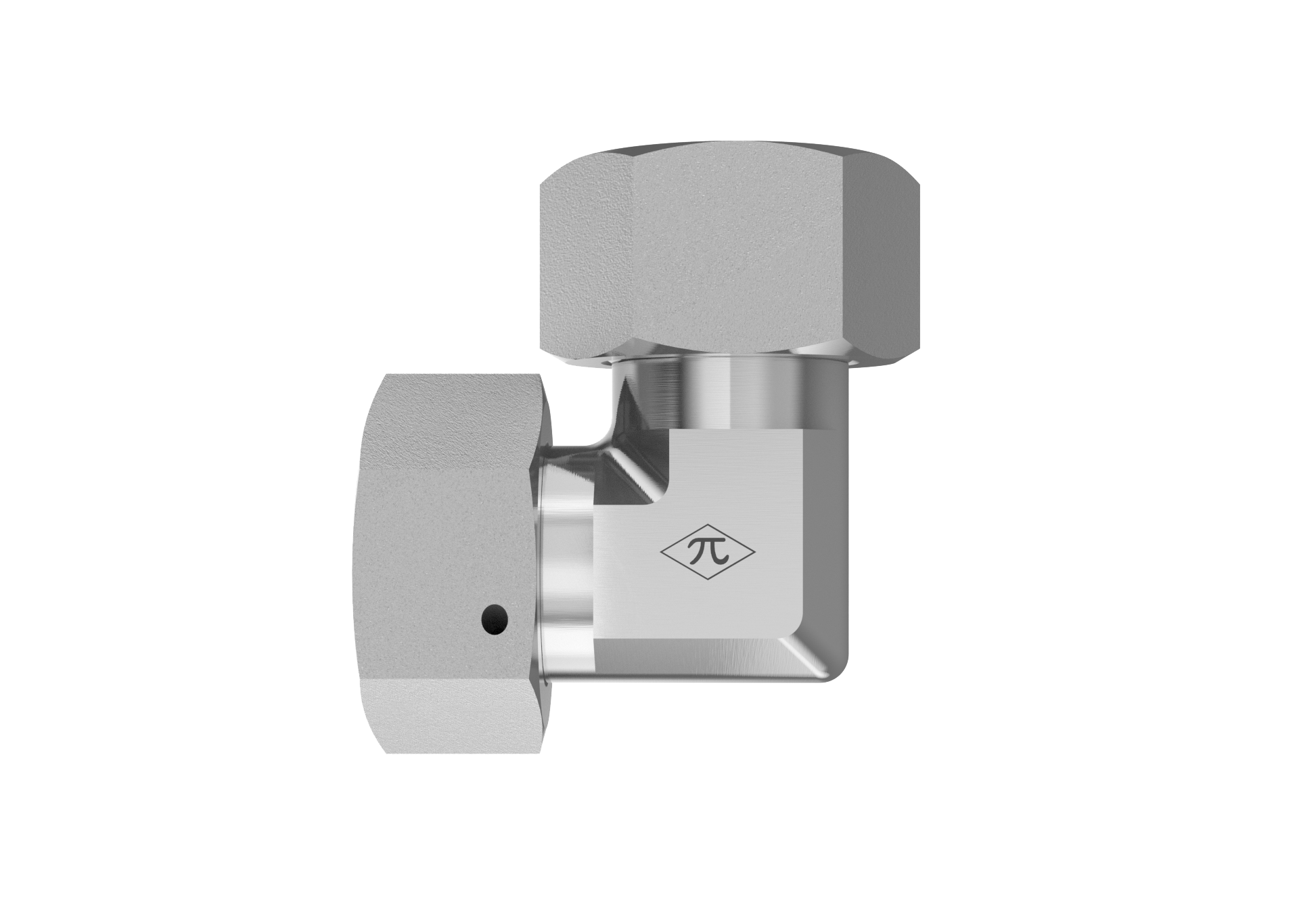

D6500-S30-S30-X

30mm Male DIN x 30mm Female Metric Swivel

D6500-S30-S30-X is a 30mm Male DIN x 30mm Female Metric Swivel in the D6500-X Series. For connecting metric tube or line, already containing nut and cutting ring, to a male DIN 2353 connection at a 90° angle.

  • Steel
  • Zinc Nickel
  • Swivel Elbow
$112.72
(0) Write a Review
SKU:
D6500-S30-S30-X

Product Details

Connection A
TypeMale DIN
Tube OD30mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM42X2.0
Connection B
TypeFemale Metric Swivel
Size30mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM42X2.0
Connection C
Connection D
Specifications
MaterialSteel
PlatingZinc Nickel
Weight1.68 lb
ShapeSwivel Elbow
Cross References
ParkerEW30SOMDCF

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
