D6504-L42-L18

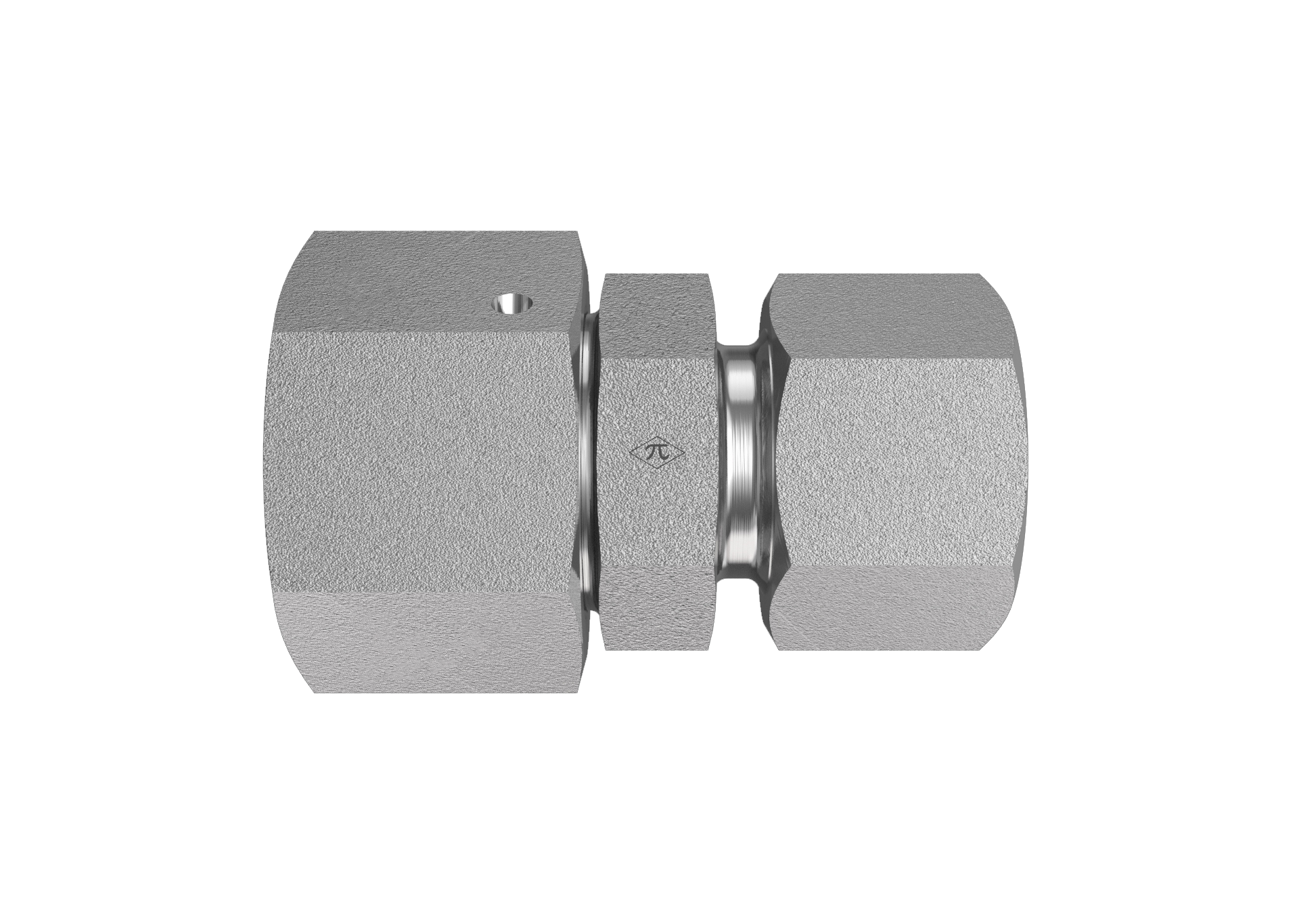

42mm Female Metric Swivel x 18mm DIN Tube

D6504-L42-L18 is a 42mm Female Metric Swivel x 18mm DIN Tube in the D6504-REDUCER Series. For connecting metric tube or line to a male DIN 2353 connection, reducing the tube size within the line.

  • Steel
  • Zinc Nickel
  • Swivel Reducer
$192.33
(0) Write a Review
SKU:
D6504-L42-L18

Product Details

Connection A
TypeFemale Metric Swivel
Size42mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM52X2.0
Connection B
TypeDIN Tube
Tube OD18mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM52X2.0
Connection C
Connection D
Specifications
MaterialSteel
PlatingZinc Nickel
Weight2.09 lb
ShapeSwivel Reducer
Cross References
ParkerRED42/18LCF

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
