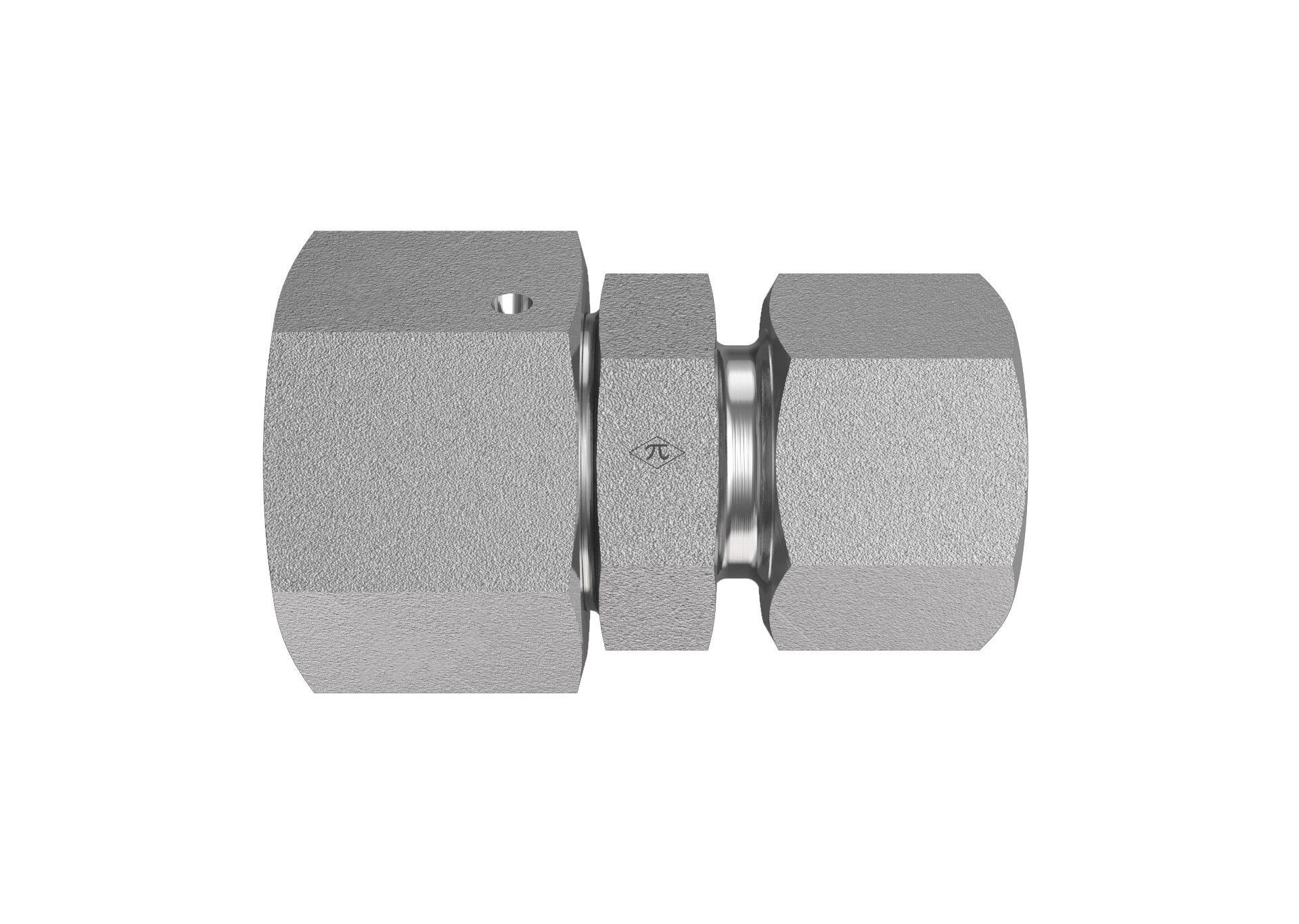

D6504-S10-S06-SS

10mm Female Metric Swivel x 6mm DIN Tube

D6504-S10-S06-SS is a 10mm Female Metric Swivel x 6mm DIN Tube in the D6504-REDUCER Series. For connecting metric tube or line to a male DIN 2353 connection, reducing the tube size within the line.

  • Stainless Steel
  • Swivel Reducer
  • None
$103.29
(0) Write a Review
SKU:
D6504-S10-S06-SS

Product Details

Connection A
TypeFemale Metric Swivel
Size10mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM18X1.5
Connection B
TypeDIN Tube
Tube OD6mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM18X1.5
Connection C
Connection D
Specifications
MaterialStainless Steel
Weight0.30 lb
ShapeSwivel Reducer
PlatingNone
Cross References
ParkerRED10/06S71

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
