D6504-S10-S08-SS

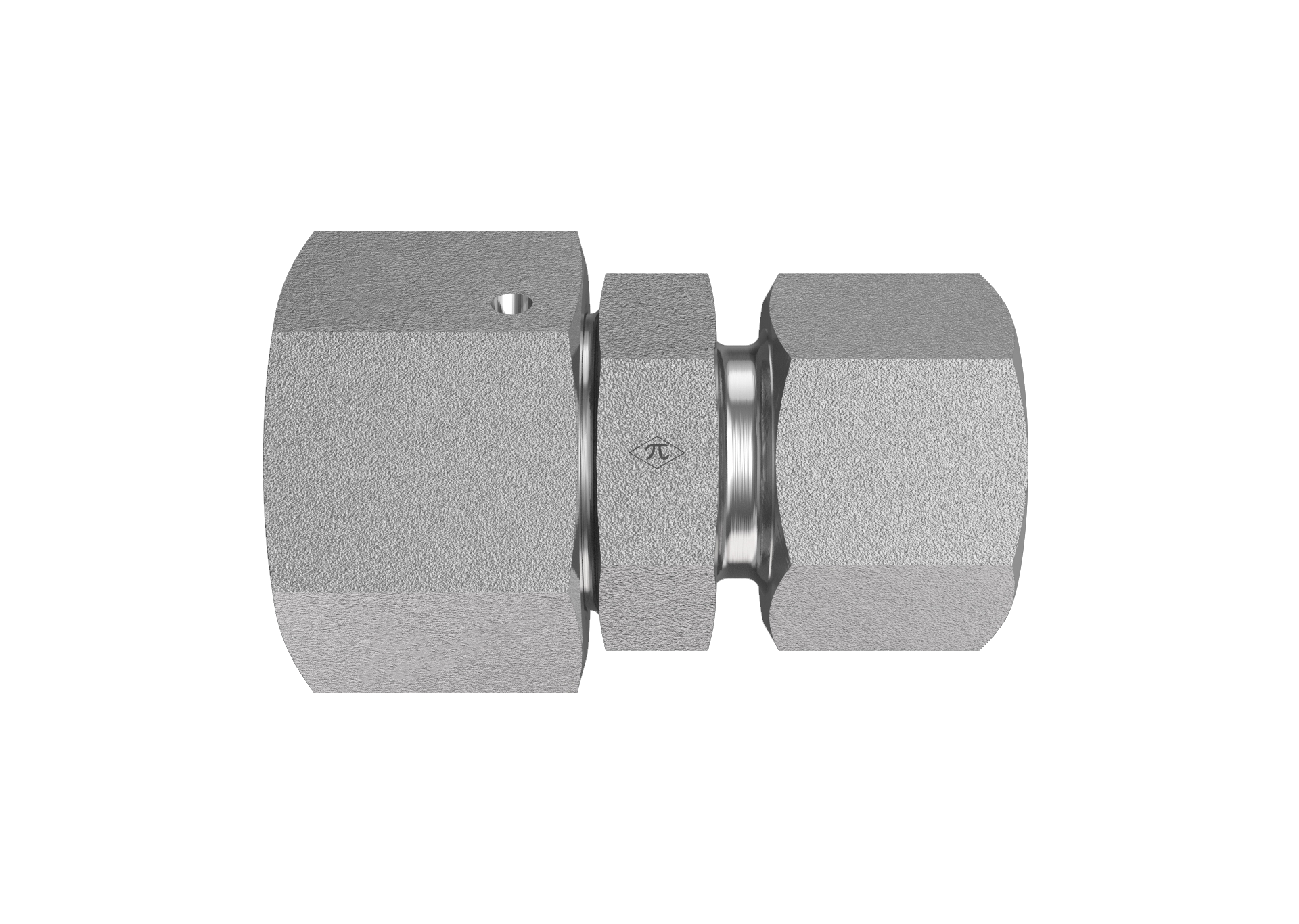

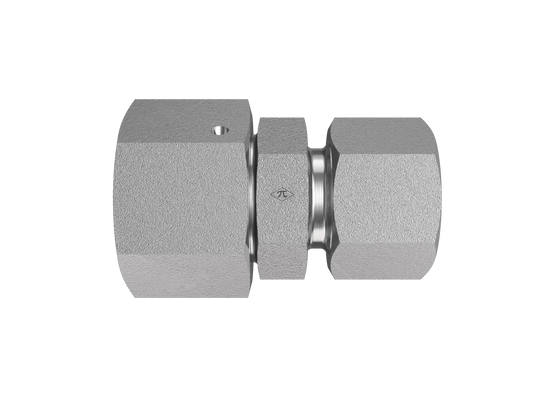

10mm Female Metric Swivel x 8mm DIN Tube

D6504-S10-S08-SS is a 10mm Female Metric Swivel x 8mm DIN Tube in the D6504-REDUCER Series. For connecting metric tube or line to a male DIN 2353 connection, reducing the tube size within the line.

  • Stainless Steel
  • Swivel Reducer
  • None
$133.44
(0) Write a Review
SKU:
D6504-S10-S08-SS

Product Details

Connection A
TypeFemale Metric Swivel
Size10mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM18X1.5
Connection B
TypeDIN Tube
Tube OD8mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM18X1.5
Connection C
Connection D
Specifications
MaterialStainless Steel
Weight0.31 lb
ShapeSwivel Reducer
PlatingNone
Cross References
ParkerRED10/08S71

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
